Truth Sentry II HS Motor System

SKU: TR435100006

Order now and we'll ship usually within 3-5 business days.

WARNING: Cancer and Reproductive Harm – www.P65Warnings.ca.gov

Product Description

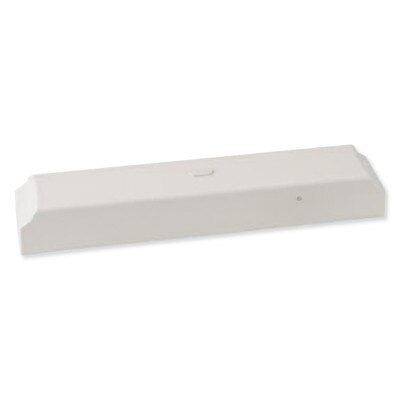

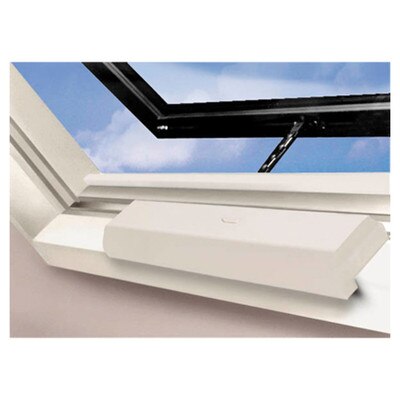

The Truth Sentry II HS Motor System is a motorized solution for heavy skylight installations. The system attaches directly to skylights to add safe open/close control. The system can be manually operated with an RF remote control, sold separately, or automatically with an attached rain sensor.

  • Rain sensor is included with HS system
  • Optional RF hand-held remote control can operate any number of motors, as well as motorized blind systems. Also features built in thermostat.
  • Can connect to home/building automation systems and security systems.
  • ETL/CE rated.
  • Low voltage 24VDC motor includes power converter for line voltage 120VAC.
  • Operator has 9" (228mm) steel chain, Chain draw weight rated at 160lbs
  • One control switch box can control up to 20 Sentry II HS equipped skylights.
  • For skylights weighing up to 160 lbs (HS is load rated at 80 lbs at chain).
  • HS system is power rated at 50 watts.

In The Box:

  • Motor Unit
  • Control Unit
  • Rain Sensor
  • Screen Interlock
  • Installation Hardware

NOTE: For indoor installation only. The Truth Sentry Power Skylight System is intended to fit onto skylight hardware manufactured by Truth Hardware only. Rain sensor only works in tandem with one motor unit. RF remote control is sold separately (TR435300002). Motorized cover is sold separately (TR12481xx).

Tech Specs

  • Part Number:
  • Chain Length: 9 inches (228mm)
  • Power Supply: 24VDC; 120VAC
  • Power Usage: 50W
  • Dimensions: 17.99 in. L x 2.58 in. H x 3.43 in. D
  • Rating: ETL/CE
  • Warranty: 1 Year

Product Docs
