UCS Nano DC Chain Actuator, 500mm/20"
Product Description
The UCS Nano DC Chain Actuator, 500mm/20" adds motorized open and close operation to wide windows, awnings, wall vents, and skylights. The 20 inch stainless steel chain operator provides durable and reliable performance, supporting up to 90lbs of force for push and pull motions.
- Nano actuators are for awning windows, hoppers, curtain wall vents and skylights
- Ideal for smart buildings; integrates with building and home automation systems
- Operator has stainless steel, double-link chain for rigidity and durability
- Low-profile, attractive aluminum case
- Low voltage DC motors are energy efficient
- Multiple actuators may be linked for simultaneous operation of multiple windows
- Push/Pull Force: Up to 90 lbs
- Minimum sash height is 10"
- UL Listed
Available In: Black, Silver or White
In The Box:
- Nano Window Motor System
- 1.5m UL Power Cable
- Manual
NOTES: Do not tamper with the actuator, or warranty is void. Mounting brackets sold separately.
Tech Specs
- Part Number:

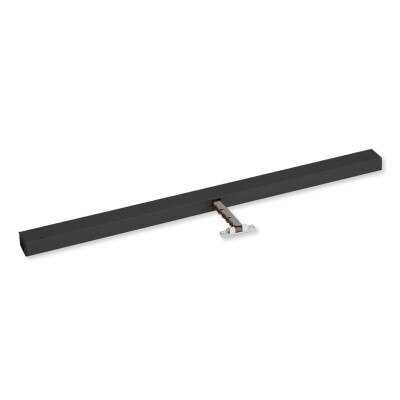

- 41954JUL: Black

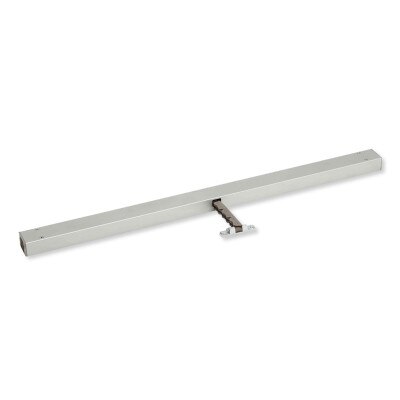

- 41953IUL: Silver

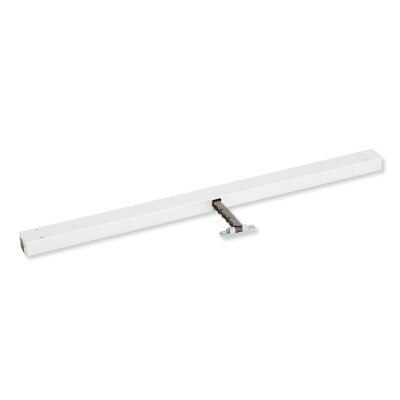

- 41955KUL: White
- Opening Mechanism: Stainless steel chain
- Supply Voltage: 24VDC Low Voltage
- Nom. Current Draw: 1.2 A average
- Limit Stop:
- (Open): Built in limit switch
- (Closed) Integrated electronic power cut-off
- Chain Stroke (approx): 500mm (20")
- Force (Max): Up to 90 lbs. (400 N) push/pull
- Chain Speed: 4-15mm per second
- Power Cable: UL cable 3 meter included
- Run/Rest Cycle: For every 60 sec running (on), must then rest (off) for 120 sec
- Ambient Operating Temperature: 14°F to 140°F (-10°C to 60°C)
- Dimensions: 27-5/8 x 1-3/8 x 1 inches (700 x 35 x 24mm)
- Certifications: UL
- Protection Class: IP20
- Warranty: 2 Years
