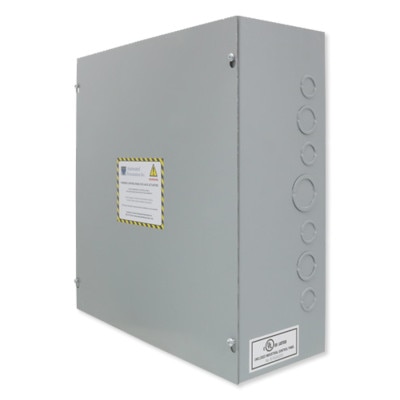

AFI Relay Station 4

$1,858.13
SKU: AFRS4

Order now and we'll ship usually within 3-5 business days.

Shop More From UCS

WARNING: Cancer and Reproductive Harm – www.P65Warnings.ca.gov

This is a heavy and/or oversized item and does not qualify for our shipping promotion.

Product Description

For Commercial, institutional and residential projects, including schools, universities, municipal buildings, offices, gymnasiums, homes, condos, and more.

The AFI Relay Station 4 acts as an interface between AFI DC Actuators and Direct Digital Control (DDC) systems such as Building Automation or Management Systems (BAS or BMS), Home Automation Systems or Heating/Ventilation/Air Conditioning Systems (HVAC).

The Relay Station 4 can operate nearly any type of motorized opening including: awning (top-hinged), hopper (bottom-hinged), casement (side-hinged), hung or sliding windows; parallel windows (hinged on 4 sides); skylights, curtain wall and other ventilation systems.

The Relay Station 4 can be used for testing and installation applications, such as extending the chain of a motorized opener to attach to a mounted window during installation or replacing a component. The Relay Station 4 can connect to up to 3 actuators).

Features:

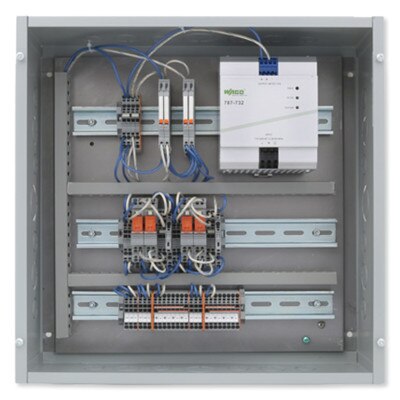

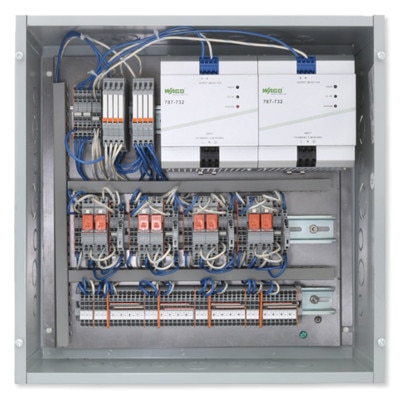

  • Powered control panels for 24VDC actuators
  • DIN rail mounted 120VAC/24VDC power supply

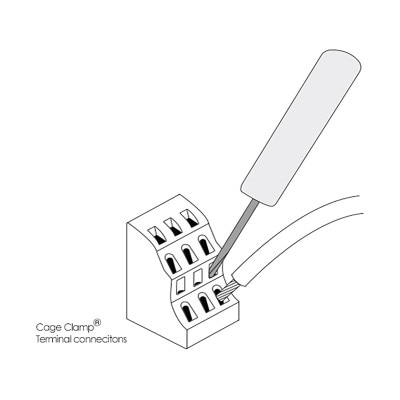

  • Quick connect input terminals
  • One-touch open/close control using SW-5686 switch (Sold separately)
  • Master and Sub group control via SPDT switches or relays

Tech Specs

  • Part Number: RS-4
  • Number of Groups: 4
  • Number of Outputs: 4
  • Dimensions: 16 H x 16 W x 6 D inches
  • Warranty: 2-Year
