UCS Vega Synchro DC Chain Actuators

$555.73 to $555.81
SKU: UC4115xxUL

Please Select Option To View Availability

WARNING: Cancer and Reproductive Harm – www.P65Warnings.ca.gov

This is a heavy and/or oversized item and does not qualify for our shipping promotion.

Product Description

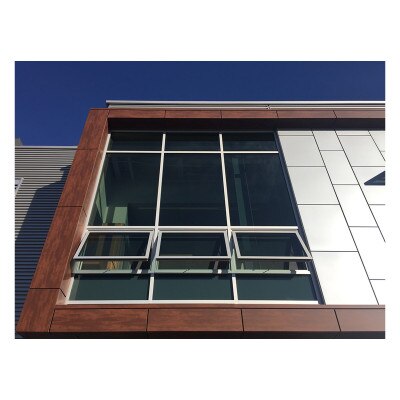

The UCS Synchro Vega DC Chain Actuator is a low voltage motorized actuator designed to work in pairs for automated opening and closing of awning or hopper windows, skylights, or curtain wall vents. Synchro Vega DC Chain Actuators are for wide vents that require 2 to 4 motors, providing multiple sash connection points and synchronized operation. The pair can be installed in commercial, institutional and residential projects, including schools, universities, municipal buildings, offices, gymnasiums, homes, condos, and more. Natural ventilation systems, such as operable windows and skylights, save energy and lower operating costs by reducing air conditioning and heating use.

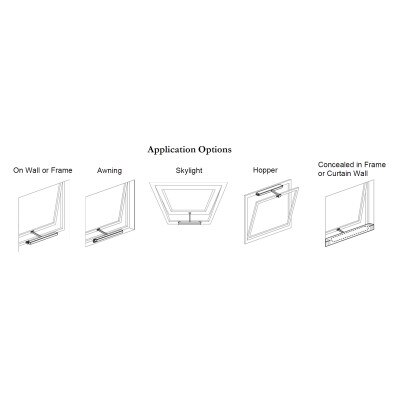

  • Vega DC actuators are for automation of awning or hopper windows, skylights, or curtain wall vents
  • Multiple actuators may be linked for simultaneous operation of multiple windows
  • 12-inch (300mm) self adjusting chain operator for proper closure at installation
  • Synchro Vega F-Signal (DC) has opening and closing feedback signals.
  • The operator has stainless steel, double-link chain for rigidity and durability
  • Low-profile, attractive aluminum case; available in Black, White or Grey paint
  • The minimum sash height is 10 inches
  • AFI actuators are SHE certified.

In The Box:

  • 1 x Vega Synchro Chain Actuator
  • 1 x Power cable
  • 2 x Standard mounting brackets
  • 4 x Screws
  • 2 x Nuts
  • 1 x Sash Connector
  • 1 x Sash Connector Pin
  • 1 x Lock Washer

NOTES: This product is sold individually; at least two are required for optimal performance for single wide installations or pairs of windows, vents, etc. Do not tamper with the actuator, or the warranty will be voided.

Tech Specs

  • Part Number:

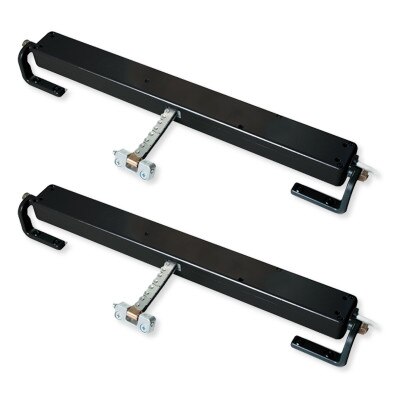

    • 41152GUL (Black)

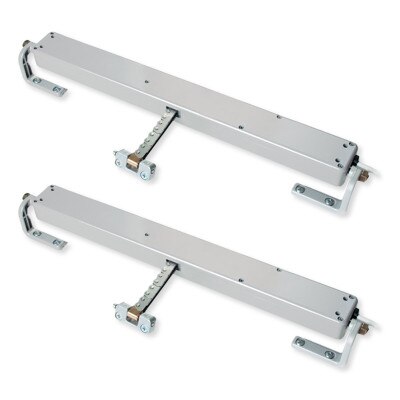

    • 41151EUL (Gray)

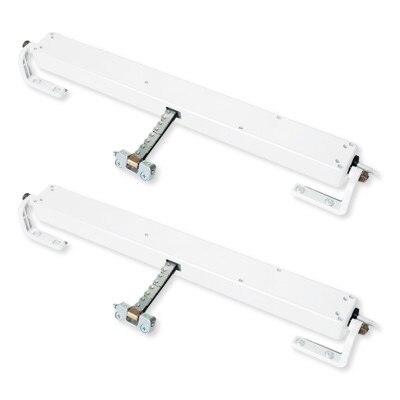

    • 41153JUL (White)
  • Force: 55 lbs. (250 N) push and pull
  • Chain Stroke: 11.8" (300mm)
  • Chain Speed: 0.35 inch (9mm) per second
  • Voltage Supply: 24VDC Low Voltage
  • Current Draw: 0.7 at full load
  • Run/Rest Cycle: For every 60 sec running (on), must then rest (off) for 120 sec
  • Limit Stop:
    • (Open): Built in limit switch
    • (Closed) Integrated electronic power cut-off
  • Power Cable: UL cable 3 meter included, white
  • Ambient Oper Temp: 14°F to 140°F (-10°C to +60°C)
  • Dimensions: 39.21" W x 2.72 H x 1.46 D (450mm W x 45mm H x 32mm D)
  • Min. installation Height:
    • 10" sash height if using pivoting brackets
    • 35.5" (900 mm) if brackets are not used
  • Ratings and Certifications: UL, CE, IP20
  • Warranty: 2 Years
