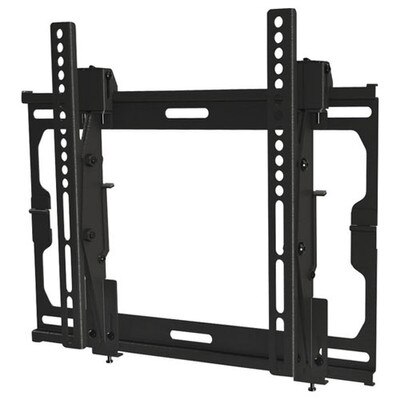

VMP Multi-Just Flat Panel Wall Display Mount with Tilt, 27-42"
The FP-MFTB is a multi-adjustable mid size flat panel mount with tilt. It holds most flat panels 27" to 42", has adjustable tilt while keeping it close to the wall. Installer friendly features including a kickstand, list adjustment and vertical and horizontal adjustment which allows for perfect placement on the wall.
- Holds most 27" – 42" flat panels
- Adjustable -5 to +15 degrees tilt
- Installation friendly kickstand
- Black powder coat finish
The mount is designed to attach to at least 2 studs up to 16" apart or other suitable support surface. It is primarily composed of formed steel, and incorporates arc welds and security screws. The mount is a universal style mount capable of mounting to most 27" to 42" flat panels. The tilt rails are capable of accommodating a maximum hole pattern of 415 mm wide and 345 mm tall. The mount is capable of tilting from -5 to +15 degrees. The mount is capable of adjusting vertically 1" post installation, and has adjustment capability of ±3 degrees post installation. The mount has an installer friendly kick stand to aid in the wiring of the flat panel. The load capacity is 100 lbs.
- Dimensions: 19(W) x 15.75(H) x 2.3(D) inches
- Weight: 5.55 pounds
- Load capacity: 100 pounds
- Vertical height adjustment: 1 inch
- List adjustment: ±3 degrees
- Distance from wall to back of the flat panel: 2.3 inches
- Maximum flat panel hole pattern: 415 x 345 mm
