Versa Mini Wireless Door/Window Sensor


IN STOCK! Ships same business day if ordered before 3pm PT

WARNING: Cancer and Reproductive Harm –

Product Description

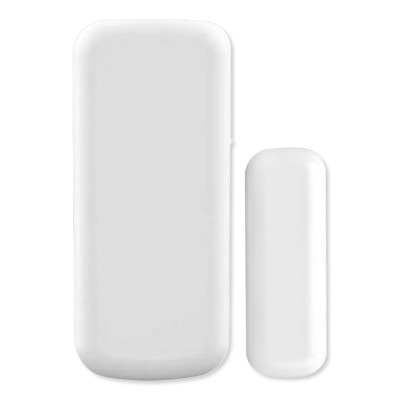

The Versa Mini Wireless Door/Window Sensor is a compact, wireless security contact that can be installed on windows, doors and many other objects that open and close. Once installed the sensor will report the current status of the object, as well as changes in status, low battery, tampering attempts and signal transmission irregularities. It is the perfect sensor for use at home or work for various wireless security systems. The Versa Mini utilizes Bluefield™ technology to shorten and simplify installation time. Bluefield™ is a magnetic field sensor and LED indicator that illuminates when a magnet comes within range of the sensor. Instead of troubleshooting wireless connection pairing with a security panel while installing the device, the Versa Mini Sensor easily illustrates when its components are installed. Just place the Versa on a window or door, and when a magnet is within range, a blue LED arrow will glow through the body, ensuring proper placement.

  • Compact magnetic contact sensor reports status of mounted open/close objects
  • Compatible with GE and Interlogix security systems
  • Visible Bluefield LED for easy and optimal magnet placement
  • Fully supervised; reports signal transmission, tamper attempts, and low battery status LED indicators
  • Exceptional wireless range (500+ feet)
  • Low-profile design for unobtrusive installations
  • Replaceable CR2032 lithium battery (5+ years)
  • Tamper resistant case

Why You Would Use This Product:

The Versa Mini Sensor offers fast installation and easy to understand signals to communicate device and monitored objects status via LED indicators and wireless transmissions to a compatible security system. Its minimal design helps it fit into smaller spaces where most other contact sensors cannot fit. This allows for greater security coverage across your property by providing more installation options.

In The Box:

  • Versa Wireless Security Sensor
  • Magnet
  • CR2032 Battery
  • 3M mounting Tape
  • Installation Instructions

NOTE: Requires a GE/Interlogix control panel, sold separately.

Tech Specs

  • Part Number: Mini-319
  • UPC: 628451036012
  • Battery: 1 Panasonic CR2032, 3VDC, 225mAh Lithium Coin Cell (replaceable)
  • Battery Life: 5+ years (typical)
  • Magnet Type: Rare Earth
  • RF Frequency: 319.5 MHz, 345 MHz, 433 MHz
  • Transmission Range: 500+ Feet
  • Supervisory Signal: Yes
  • Unique ID Codes: 16 Million
  • Indicator Light: Bluefield LED, Magnet Alignment, Low Battery, Signal Transmission
  • Tamper: Case Tamper sensor
  • Slide Cover Color: White, Brown
  • Operating Temperature: 32 to 120°F (0 to 50 degrees°C)
  • Sensor Dimensions: 2.22(H) x 1.0(W) x 0.25(D) inches (56 x 25 x 6.35 mm)
  • Magnet Dimensions: 1.55(H) x 0.5(W) x 0.25(D) inches (39.37 x 12.7 x 6.35 mm)
  • Weight: 0.4 ounces
  • Approvals and Certifications: FCC, IC, UL, ULc
  • Warranty: 2 Years

Product Docs
