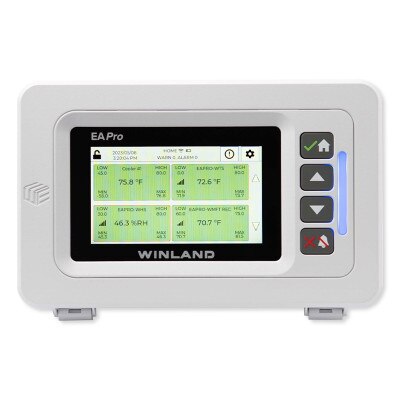

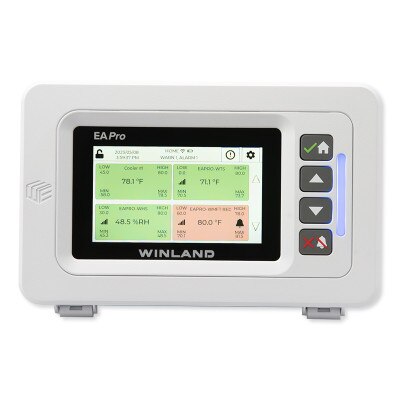

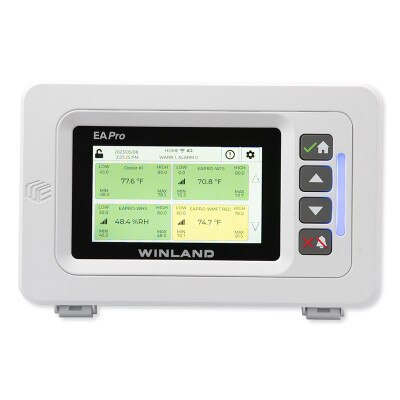

Winland EnviroAlert Professional EAPro Gateway
Product Description
The EnviroAlert Professional® Gateway ("EAPro®-Gateway") an on-premise monitoring console, is part of the Winland Critical-Environment Monitoring Solution. When integrated into a security system, or used as a stand-alone solution, the EAPro®-Gateway provides real-time monitoring and alerting of up to 34 zones impacting environment-dependent assets such as temperature, humidity, water, and gas. As part of the cloud-based solution, the EAPro®-Gateway and all associated wired and wireless sensors can be managed remotely from INSIGHT. The EAPro®-Gateway requires a fee-based subscription to INSIGHT if you want to receive email/text message alerts, reporting and the ability to configure online.
The EAPro®-Gateway may be used with or without INSIGHT and integrated into an alarm panel via the relay outputs for each zone being monitored.
- Monitor up to 34 sensors (up to 30 wireless, up to 4 wired)
- Flexible application options through the use of wired and wireless sensors
- Remote visibility and device management through web-based application called INSIGHT
- Monitoring capabilities include: temperature, humidity, water, gases, and pressure
- Console accommodates 4-20mA and 0-5V sensors for additional application options
- 4 programmable relays, with an optional aux relay
In The Box:
- Temp Alert Sensor
- 2 x Mounting Screws
- 2 x Anchors
- Guide
NOTE: Do NOT put the sensor in the freezer/cooler – instead use an EnviroAlert or EnviroAlert Professional with a wired sensor for these conditions (all sold separately). Only use in non-condensing environments.
Tech Specs
- Part Number: EAPRO-GTWY
- Low/High Limit Adjust Range: -100°C to 150°C (-148°F to 302°F)
- Alarm Outputs: 5 – Form C Relays (Configurable)
- Power Relay: 4 X 30V @ 1amp and 1 x 30V @ 3amp
- RF Frequency: 2.405 GHz – 2.480 GHz, 16 channels (Subject to change)
- Data Collection Frequency (local): 30 seconds, 1, 5, 15, 30, 60, 120 minutes (default 5 minutes)
- Real-Time Data Viewing (internet): Real-Time Data Viewing (internet) 5, 15, 30, 60, 120 minutes
- Data Collection Storage (local): 10,000 data points, 1 minute = 1 week, 120 minutes = 2 years
- Power Requirements: 11~26V @ 1A
- Operating Temperature Range: 32° to 122°F (0° to 50°C) Indoor Use Only (Subject to change)
- Ethernet: 10/100BASE-TX/FX; fully compliant to IEEE802-3u standard
- Wireless: 2.4Ghz (Subject to change)
- Transmission Distance: 10,000 feet open air/ indoor range pending (Subject to change)
- Console Dimensions: 8.13" x 5.52" x 1.93" (20.6cm x 14.0cm x 4.9cm) (Subject to change)
