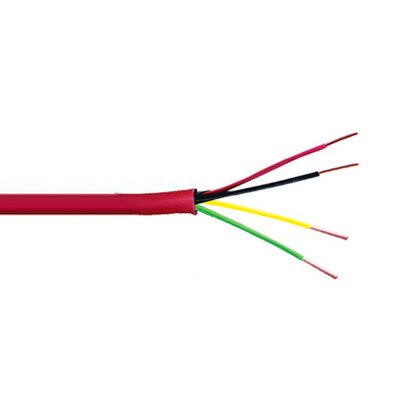

Fire Alarm Wire, 18AWG, 4C, 500'

$128.23
SKU: WR184NSDJ05

IN STOCK! Ships same business day if ordered before 3pm PT

Shop More From Wire Products

WARNING: Cancer and Reproductive Harm – www.P65Warnings.ca.gov

This is a heavy and/or oversized item and does not qualify for our shipping promotion.

Product Description

Fire alarm cable for fire-protective signaling circuits / power limited circuits.

Available in boxes of: 500 Ft.

Tech Specs

  • AWG (American Wire Gauge): 18
  • Conductors: 4 (Red, Black, Yellow and Green)
  • Type: UL, FPL, 75C
  • Jacket Color: Red
  • Package: Box
  • Applications: Wiring for fire-protective signaling circuits. Code restrictions ok for use with power limited circuits.

Construction

  • Conductor: 18 AWG Solid Bare Copper
  • Assembly: Tubed jacket over twisted insulated conductors
  • Insulation Type: Polypropylene
  • Insulation Thickness: 0.008" nom.
  • Insulation Diameter: 0.058" nom.
  • Lay Length: Straight
  • Jacket Type: PVC
  • Jacket Thickness: 0.015" nom.
  • Jacket Diameter: 0.170" nom.

Properties:

  • Temperature Rating: -20 to 75°C
  • Operating Voltage: 300 Volts max.
  • Capacitance: 20 pf/ft nom.
  • Impedance: 81 Ohms nom.
  • DC Resistance: 6.5 Ohms/M' at 20°C
  • Flame Rating: UL 1685 Vertical Tray
