X10 Appliance Wall Switch


IN STOCK! Ships same business day if ordered before 3pm PT

WARNING: Cancer and Reproductive Harm –

Product Description

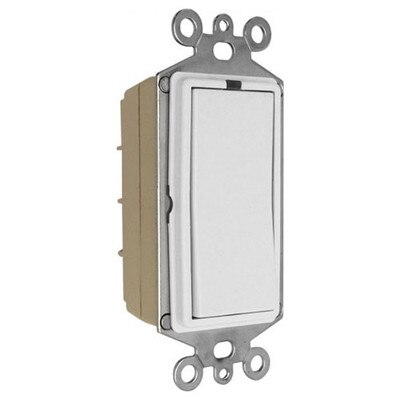

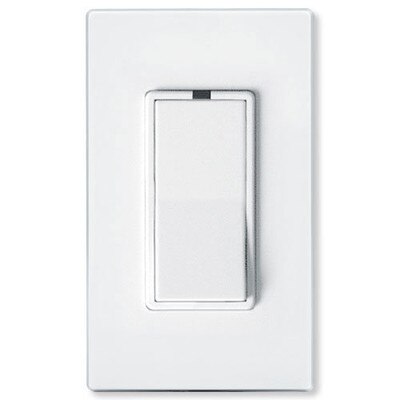

The XPS3 (3-way master/single pole) 20 Amp Wall Switch Module is designed to control non-dimming incandescent and inductive ON/OFF loads such as: higher wattage outside flood lights, fluorescent lighting and small appliances. A removable decorative paddle is located on the Wall Dimmer Module for local control and an LED is used as an indicator of switch status.


  • Rated at 120VAC/60Hz, 20 amp, 1800W maximum load
  • Supports incandescent, fluorescent, appliance and motor loads
  • Neutral wire required

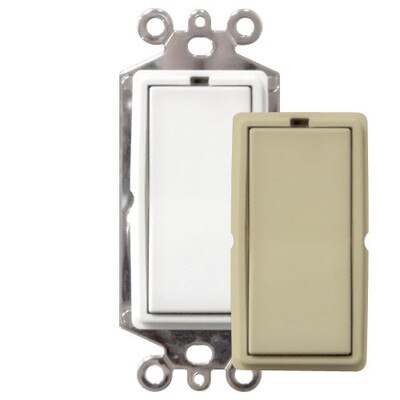

  • Includes both white and ivory rocker plates
  • UL and CSA approved

Tech Specs

  • AC Voltage: 120 VAC, 60 Hz
  • Load Rating: 1800 Watts, 1/2 HP, 20 Amps
  • Dimmable: No
  • Connection Requirement: Neutral Wire
  • Certifications: UL listed, CSA approved
