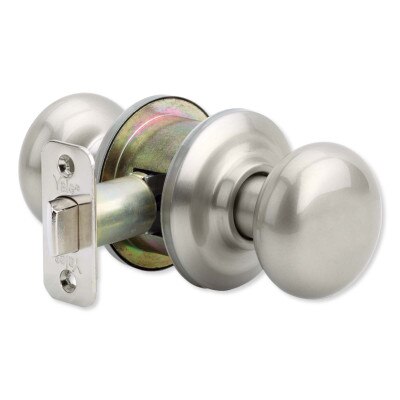

Yale Cambridge Passage Door Knob Set
Product Description
The Yale Cambridge Passage Door Knob Set, Satin Nickel, is part of the YH Collection. It's ideal for a front door entry when paired with a Yale Keypad Lock and can also be used for a pantry, laundry room, study, secondary door, or any door that doesn't require a privacy lock. It fits standard doors, works with both inswing and outswing doors, and can be handed for left or right swing.
In The Box:
- Cambridge Passage Door Knob
- Manual
Tech Specs
- Part Number:
- 10CB-SP BSP: Black Suede
- 10CB-SP US3: Oil-Rubbed Bronze
- 10CB-SP 10BP: Polished Brass
- 10CB-SP US15: Satin Nickel
- UPC:
- 10CB-SP BSP: 081023001502
- 10CB-SP US3: 081023181440
- 10CB-SP 10BP: 081023181402
- 10CB-SP US15: 081023181457
- Door Specs:
- 2-1/8" Face Bore
- 1" Edge Bore
- 2-3/8"or 2-3/4" Backset
- Latch: Box Pack: Adjustable 2-3/8" to 2-3/4" RC RC (Round Corner)
- Door Thickness: 1-3/8" to 1-3/4"
- Cylinder: 6 Pin Cylinder (KW-1 Compatible)
- Keying: Box Pack: KA3 (Keyed Alike)
- Faceplate:
- 1" W x 2 1/4" H
- RC (Round Corner)
- Strike:
- Box Pack: 2 1/4" Full Lip
- RC (Round Corner)
- Certified: A156.2 Series 4000
- ANSI/BHMA: Grade 2
- Warranty: Lifetime Limited Warranty Finish and Mechanical for Original Owner
