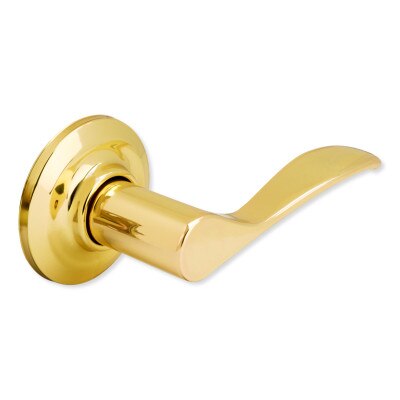

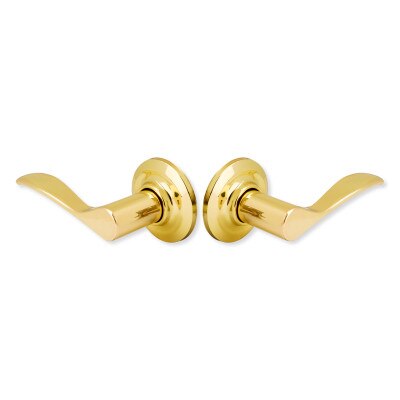

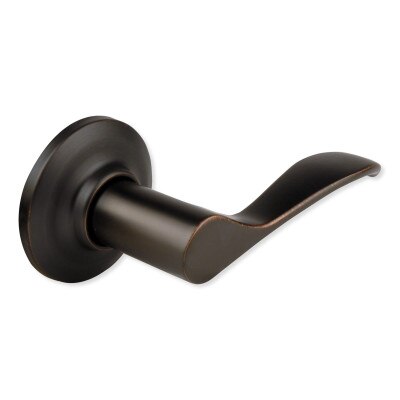

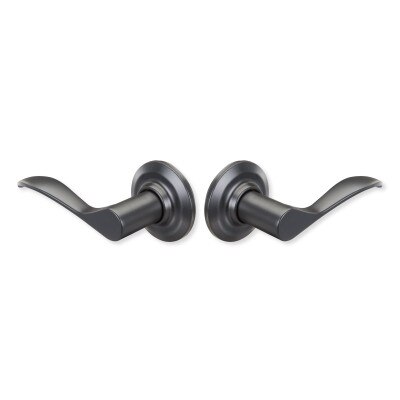

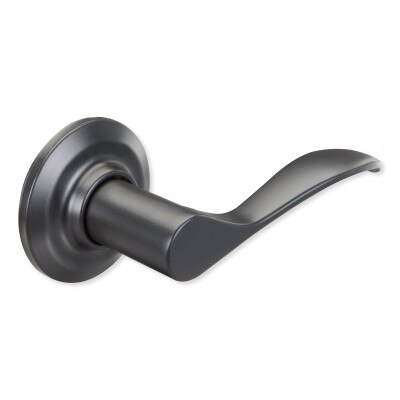

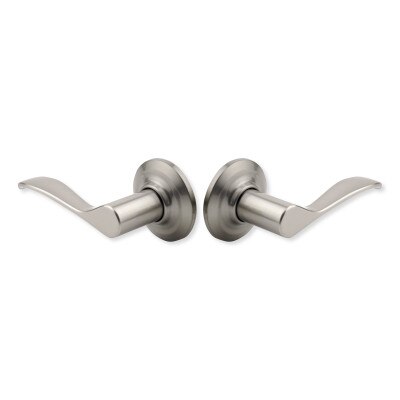

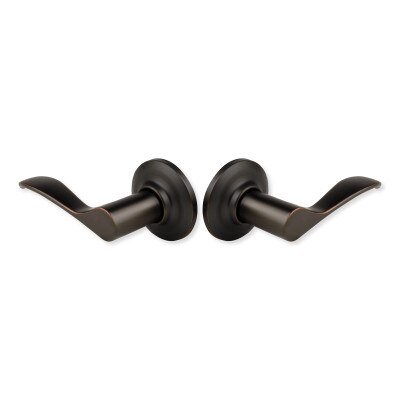

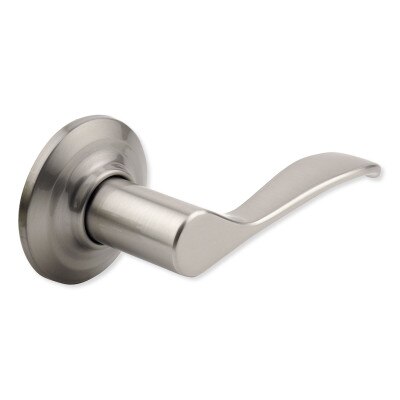

Yale Norwood Lever Passage, Non-Locking
Product Description
The Yale Norwood Lever Passage (Non-Locking) is part of the YH Collection. It's ideal for a front door entry when paired with a Yale Keypad Lock and can also be used for a pantry, laundry room, study, secondary door, or any door that doesn't require a privacy lock. It fits standard doors, works with both inswing and outswing doors, and can be handed for left or right swing.
In The Box:
- Yale Norwood Lever Passage
- Manual
Tech Specs
- Part Number:
- D5108N01: Satin Nickel
- D5108K01: Oil-Rubbed Bronze
- D5108S01: Black Suede
- D5108301: Polished Brass
- UPC:
- D5108K01: 081023182867
- D5108301: 081023162081
- D5108N01: 081023184175
- D5108S01: 081023001663
- Product Dimensions: 2-9/16" x 2-9/16" x 2"
- Grade: Grade 2: Heavy Duty A156.2 Series 4000 ANSI/BHMA
- Door Thickness: 1-3/8" to 1-3/4"
- Edge Bore: 1"
- Backset: 2-3/8" or 2-3/4"
- Face Bore: 2-1/8"
- Cylinder: NA
- Keyway1: NA
- Number of Keys: 0
- Latch: Adjustable
- Latch Front: RC (Round Corner)
- Strike: 2 1/4" Full Lip RC (Round Corner)
- Strike Front: RC (Round Corner)
- Handing: Non-Reversible
- Warranty: Lifetime Limited
