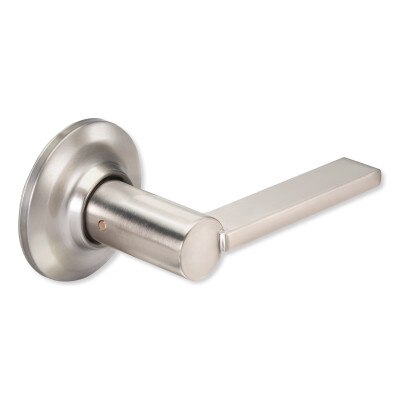

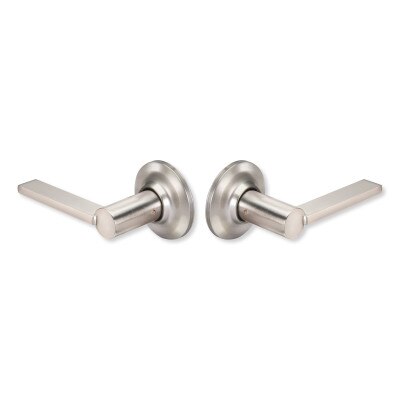

Yale Valdosta Lever Passage with Round Rosette, Non-Locking, Satin Nickel

$17.77
SKU: YAD510VN01

Order now and we'll ship usually within 3-5 business days.

WARNING: Cancer and Reproductive Harm – www.P65Warnings.ca.gov

Product Description

The Yale Valdosta Lever Passage with Round Rosette, Non-Locking, Satin Nickel, is part of the YH Collection. It's ideal for a front door entry when paired with a Yale Keypad Lock and can also be used for a pantry, laundry room, study, secondary door, or any door that doesn't require a privacy lock. It fits standard doors, works with both inswing and outswing doors, and features concealed screws within its design to provide a clean, sleek look.

In The Box:

  • Valdosta Round Lever Passage
  • Manual

Tech Specs

  • Part Number: D510VN01
  • UPC: 081023698474
  • Door Specs:
    • 2-1/8" Face Bore
    • 1" Edge Bore
    • 2-3/8"or 2-3/4" Backset
  • Latch: Box Pack: Adjustable 2-3/8" to 2-3/4" RC RC (Round Corner)
  • Door Thickness: 1-3/8" to 1-3/4"
  • Cylinder: 6 Pin Cylinder (KW-1 Compatible)
  • Keying: Box Pack: KA3 (Keyed Alike)
  • Faceplate:
    • 1" W x 2 1/4" H
    • RC (Round Corner)
  • Strike:
    • Box Pack: 2 1/4" Full Lip
    • RC (Round Corner)
  • Certified: A156.2 Series 4000
  • ANSI/BHMA: Grade 2
  • Warranty: Lifetime Limited
