Yale Z-Wave Plus Assure Interconnected Lockset with Touchscreen Deadbolt, Norwood Lever, Right-Handed
Product Description
The Yale Z-Wave Plus Assure Interconnected Lockset with Touchscreen Deadbolt Norwood Lever, Right-Handed is a motorized electronic lock controlled by a touchscreen keypad from the outside and by a T-turn lock on the inside. This lock can be locked/unlocked using the touchscreen keypad or standard keyhole. Z-Wave integration allows it to be added to your home automation or security system to trigger events when the lock is used.
Yale Real Living Assure Lock Interconnect combines electronic deadbolts with the convenience of a passage lever for panic proof egress. From the inside, both the latchbolt and the deadbolt are retracted simultaneously in a single motion for a quick and easy exit.
- Panic-proof egress. From the inside, both the latchbolt and the deadbolt are retracted simultaneously in a single motion for a quick and easy exit.
- Interconnected electronic locksets combine security and convenience with Assure Lock electronic deadbolts and a passage lever. Forget the hassle of carrying keys, unlock your door with a pin code.
- Integrates into your Z-Wave home automation or security system.
- Create up to 250 unique pin codes to share with family and friends (25 with no controller).
- Monitor, lock and unlock from anywhere (*Varies depending on controller).
- Receive interference alarms for tamper and wrong code attempts.
- Weather resistant, durable buttons.
- Keypad has backlit numbers that won't wear off.
- Optional auto re-lock, lockout and tamper alarms.
- Installs in minutes with just a screwdriver. DIY installation or professionally installed.
- All mechanical locksets are 5-1/2" center to center dimension.
- ANSI/BHMA A156.12 Grade 2 Certified
In The Box:
- Z-Wave Assure Interconnected Lockset with Touchscreen Deadbolt (RH)

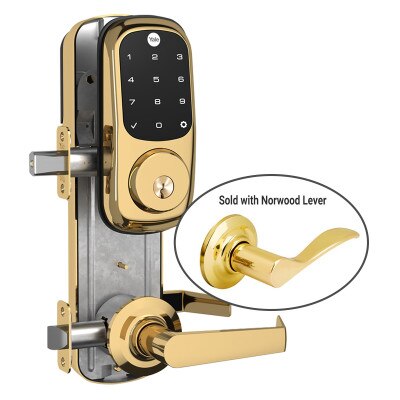

- Norwood Style Lever
- Z-Wave Network Module, Plug-In
- 4 x AA Batteries
- 2 x Turnkeys
- Mounting Hardware
- Instruction Manual
NOTE: Optional network integration requires a Z-Wave controller.
Tech Specs
- Part Number:

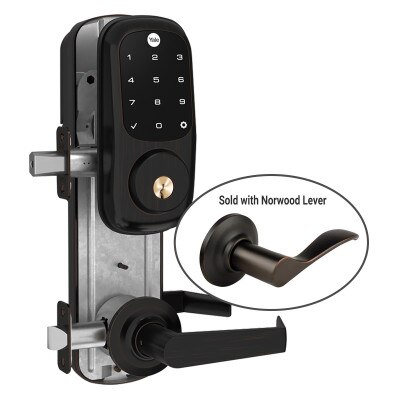

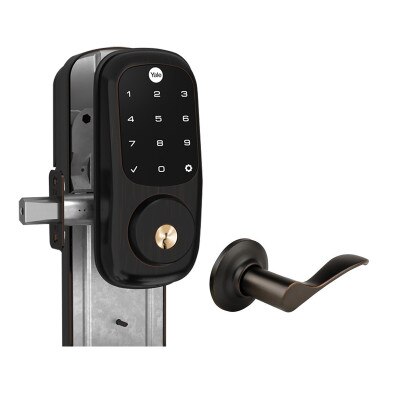

- YRC226-ZW2-NW-5-0BP-RH: Oil-Rubbed Bronze

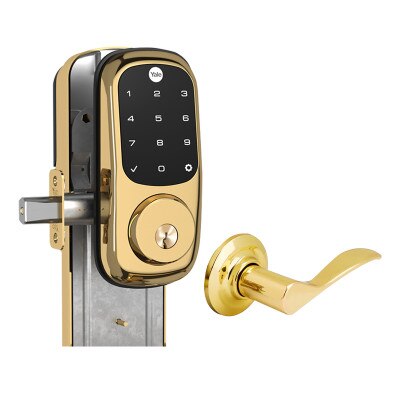

- YRC226-ZW2-NW-5-605-RH: Polished Brass

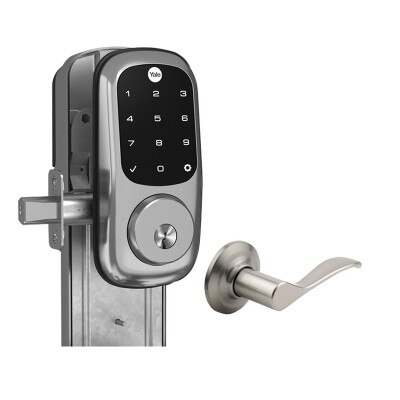

- YRC226-ZW2-NW-5-619-RH: Satin Nickel
- Wireless Protocol: Z-Wave (908.4 MHz) U.S. – includes plug-in Network Module
- Max. User Codes: Standalone: 25 user codes; With Network Module: 250 user codes; 4-8 digits each
- Keypad Type: Touchscreen
- Grade 2: A156.12 ANSI/BHMA
- Handing: Reversible (Lock is set at RH by default (hinges right); can be reversed in the field for LH by a professional)
- Batteries: 4 AA Alkaline Batteries (Included)
- Face Bore: 2-1/8" (54mm)
- Edge Bore: 1" (25mm)
- Center to Center: 5-1/2"
- Backset: 2-3/8" or 2-3/4"
- Latch: Adjustable
- Latch Front: RC (Round Corner)
- Door Thickness: 1-3/8" (35mm) to 1-3/4" (44mm)
- Strike Lever: 2 1/4" (57mm) Full Lip
- Deadbolt Strike: 1" x 2 1/4"
- Round Corner: Standard, other strikes available to order
- Thumbturn: Yes
- Cylinder: KW-1 Compatible standard, other cylinders/keyways available to order
- Keying KD (Keyed Different): Standard, master keying available to order
- Lock Dimensions:
- Exterior: 11/16 x 2-9/16 x 3-9/16 inches
- Interior: 3-3/4 x 3-1/8 x 6-3/4 inches
- Approvals: ANSI/BHMA Grade 2 – BHMA Certified
- Warranty: 1 Year for Electronics, Lifetime Limited for Finish/Mechanical
