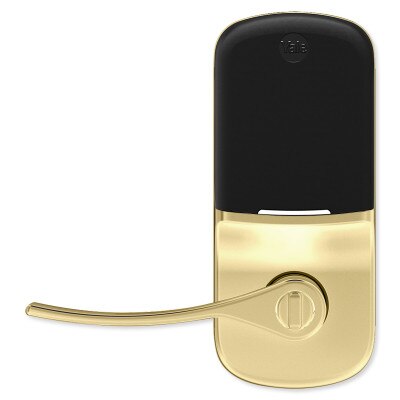

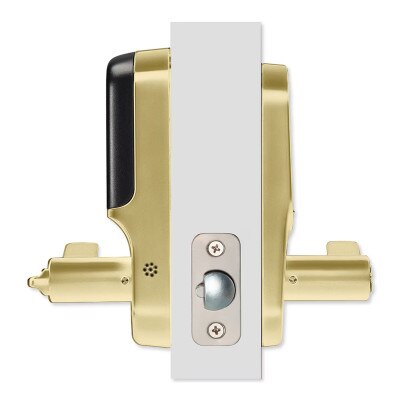

Yale Z-Wave Plus Assure Touchscreen Keypad Lever Lock, Gen5

$209.00
SKU: YAYRL226ZW2x

Please Select Option To View Availability

WARNING: Cancer and Reproductive Harm – www.P65Warnings.ca.gov

Product Description

The Yale Assure Lever Locks are perfect for securing doors throughout your home that do not have a deadbolt. Unlock and lock your home with ease with the Yale Z-Wave Plus Assure Touchscreen Keypad Lever Lock. This Z-Wave Plus Lock features three ways to lock/unlock your door: inputting codes with the backlit touchscreen keypad, traditional turnkeys, or with Z-Wave ekeys. Create unique pin codes to share or delete with family and guests whenever you need to. This Yale Assure Lever Lock features Z-Wave Plus technology and easily integrates into 50+ home automation and security systems including SmartThings, Alarm.com, Honeywell, Vivent, Vera and more! The lock is tamper resistant and easy to install. *Features may vary based on Z-Wave controller.

Using the Yale Assure app, share digital ekeys with friends and family or distribute access codes to allow them to enter your home. You can also use the app to view usage history, battery levels, and adjust the deadbolt settings.

Features:

  • Auto Relock function ensures your door is always locked when the door is closed
  • Backlit Keypad wakes with a touch and has numbers that won't wear off
  • Create and share virtual ekeys and keycodes to access your home for people you trust
  • Customize auto re-lock, entry codes and tamper alarms within the lock settings
  • In case the batteries die, you can quickly power the lock with a 9V battery
  • Lock-up with one touch as you leave by touching the Yale logo on the keypad
  • Fits onto standard doors and replaces existing hardware with just a screwdriver
  • Touchscreen models include voice guided instructions in 3 languages

In The Box:

  • Touchscreen Keypad Lever Lock
  • Two Academy Style Levers
  • Z-Wave Plus Network Module, Plug-In
  • 4 x AA Batteries
  • 2 x Keys
  • Mounting Hardware
  • Door Template
  • Instruction Manual

NOTE: Compatible with single-bore hole doors only.

Tech Specs

  • Part Number:

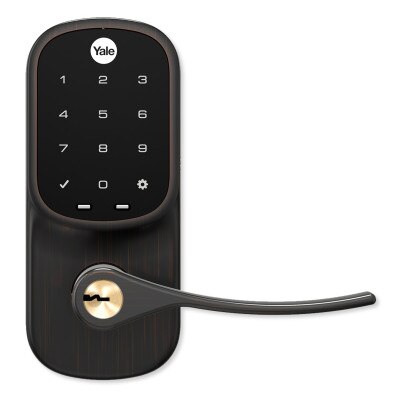

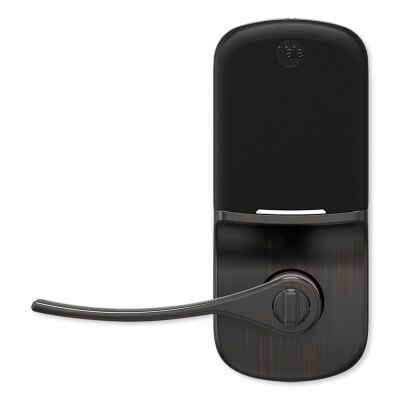

    • YRL226-ZW2-0BP: Oil-Rubbed Bronze

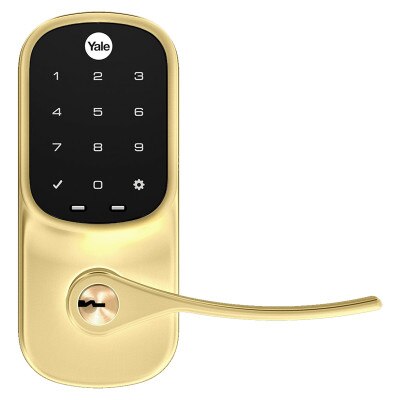

    • YRL226-ZW2-605: Polished Brass

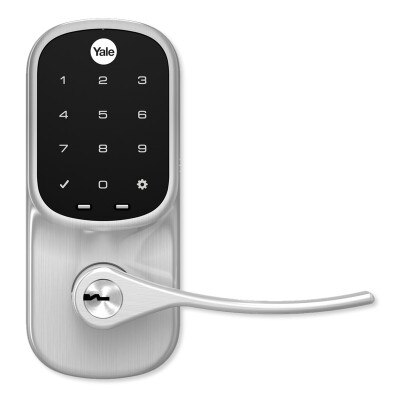

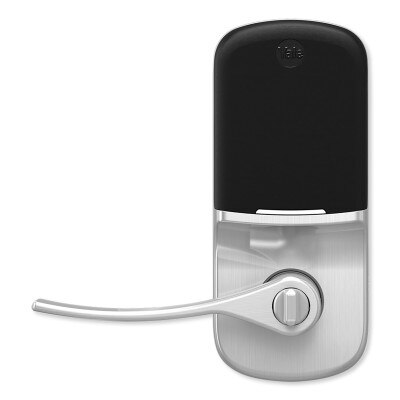

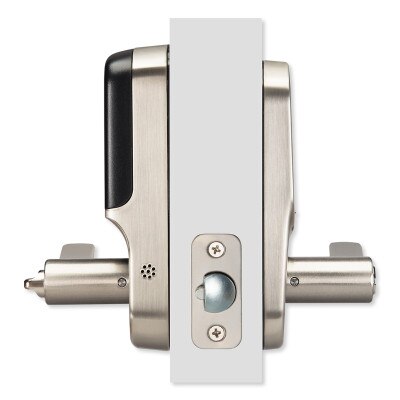

    • YRL226-ZW2-619: Satin Nickel

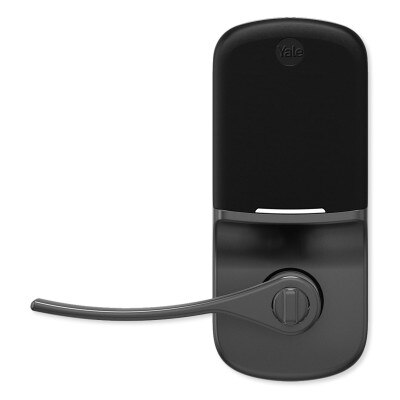

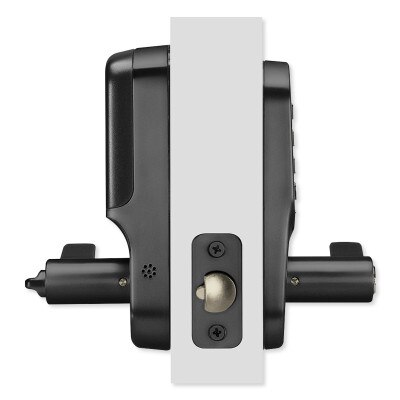

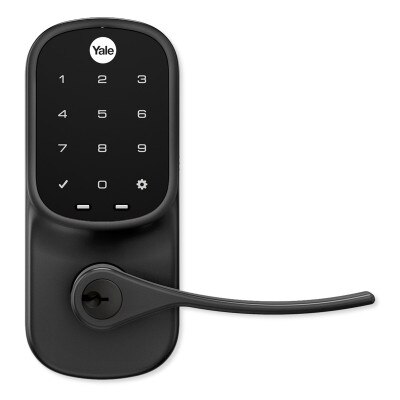

    • YRL226-ZW2-BSP: Black Suede
  • UPC:
    • YRL226-ZW2-0BP: 081023002974
    • YRL226-ZW2-605: 081023002981
    • YRL226-ZW2-619: 081023002998
    • YRL226-ZW2-BSP: 081023090322
  • Wireless Protocol: Z-Wave Plus (908.4 MHz)
  • Max. User Codes: Standalone: 25 user codes; With Network Module: 250 user codes; 4-8 digits each
  • Keyway: KW-1; 5 Pin Brass Cylinder
  • Keys Quantity: 2
  • Handing: Reversible right or left
  • Battery: 4 x AA batteries (supplied)
  • Battery Life: approx. 1 year
  • Door Specs:
    • 2-1/8" Face Bore, 1" Edge Bore
    • 2-3/8" or 2-3/4" Backset
  • Door Thickness: 1-3/8 to 1-3/4 inches
  • Dimensions:
    • Exterior: 6-3/4 (H) x 2-9/16 (W) x 2-7/16 (D) inches
    • Interior: 6-3/8 (H) x 2-3/4 (W) x 3 (D) inches
  • Strike: 1-1/8 x 2 3/4 inches; RC (Round Corner)
  • Latch: 2-3/8" to 2-3/4" Adjustable
  • Latch Faceplate: 1" x 2-1/4" RC (Round Corner)
  • Leverset Temperature Range:
    • Outside: -22° to 140° F (-30° to 60° C)
    • Inside: 5° to 158° F (-15° to 70° C)
    • Storage: -40° to 185° F (-40° to 85° C)
  • Battery Temperature Range: 14° to 131° F (-10° to 55° C)
  • Certifications: FCC, IC, ANSI/BHMA A156.36, Grade 2
  • Warranty: 1 Year for Electronics, Lifetime Limited for Finish/Mechanical
