  • Yale Z-Wave Assure Interconnected Lockset with Touchscreen Deadbolt, Augusta Lever, Left Handed

Yale Z-Wave Assure Interconnected Lockset with Touchscreen Deadbolt, Augusta Lever, Left Handed

$381.74
SKU: YAYRC226ZW2AU5xLH

Please Select Option To View Availability

WARNING: Cancer and Reproductive Harm – www.P65Warnings.ca.gov

Product Description

Assure Lock Touchscreen Interconnected Deadbolt and Lever with Z-Wave. Single lock point. Latchbolt is operated by either lever at all times. Deadbolt electronic activated touchscreen on outside or by T-turn inside. Interior lever retracts latch and deadbolt simultaneously.

Yale Real Living Assure Lock Interconnect combines electronic deadbolts with the convenience of a passage lever for panic proof egress. From the inside, both the latchbolt and the deadbolt are retracted simultaneously in a single motion for a quick and easy exit.

  • Panic-proof egress. From the inside, both the latchbolt and the deadbolt are retracted simultaneously in a single motion for a quick and easy exit.
  • Interconnected electronic locksets combine security and convenience with Assure Lock electronic deadbolts and a passage lever. Forget the hassle of carrying keys, unlock your door with a pin code.
  • Integrates into your Z-Wave home automation or security system.
  • Create up to 250 unique pin codes to share with family and friends (25 with no controller).
  • Monitor, lock and unlock from anywhere (*Varies depending on controller).
  • Receive interference alarms for tamper and wrong code attempts.
  • Key option for peace of mind – comes with 2 keys.
  • Weather resistant, durable buttons.
  • Keypad has backlit numbers that won't wear off.
  • Optional auto re-lock, lockout and tamper alarms.
  • Installs in minutes with just a screwdriver. DIY installation or professionally installed.
  • All mechanical locksets are 5-1/2" center to center dimension.
  • ANSI/BHMA A156.12 Grade 2 Certified

In The Box:

  • Touchscreen Lockset, Left Handed
  • Z-Wave Network Module
  • 4 x AA Batteries
  • 2 x Keys
  • Mounting Hardware
  • Manual

NOTE: Network integration requires a Z-Wave controller (sold separately).

Tech Specs

  • Part Number:

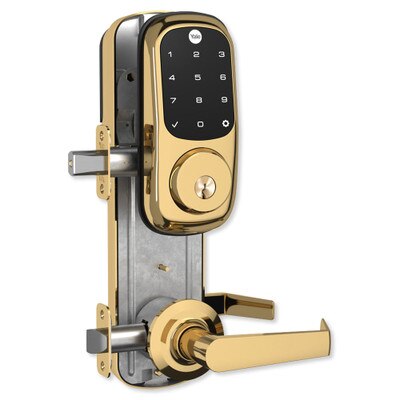

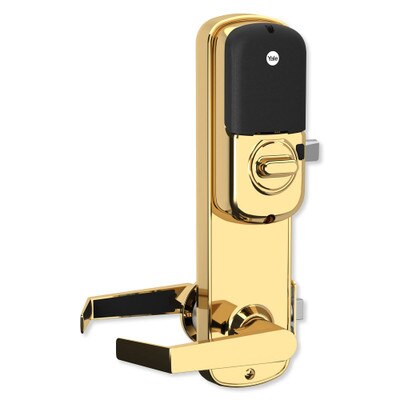

    • Bright Brass: YRC226-ZW2-AU-5-605-LH

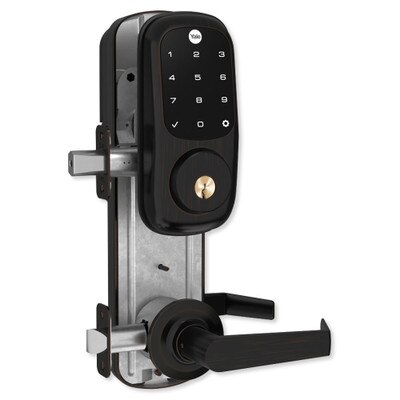

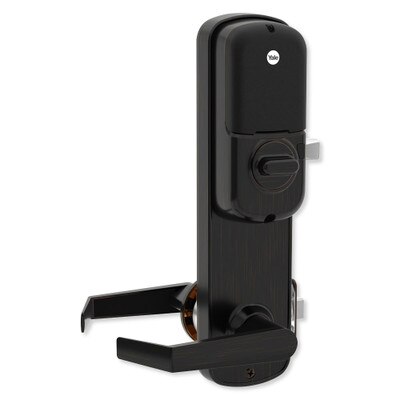

    • Oil-Rubbed Bronze: YRC226-ZW2-AU-5-0BP-LH

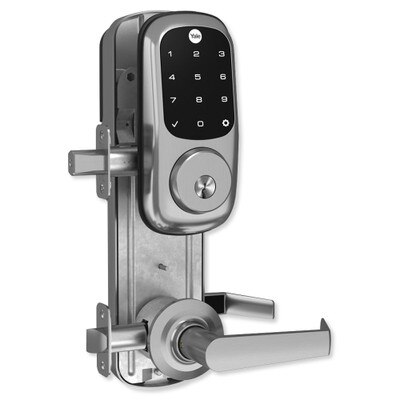

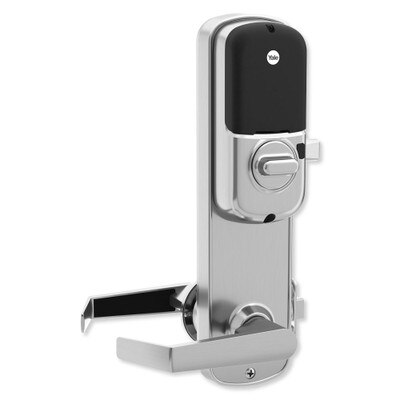

    • Satin Nickel: YRC226-ZW2-AU-5-619-LH
  • Lever Style: Augusta (AU)
  • Wireless Protocol: Z-Wave (908.4 MHz) U.S. – includes plug-in Network Module
  • Max. User Codes: Standalone: 25 user codes; With Network Module: 250 user codes; 4-8 digits each
  • Keypad Type: Touchscreen
  • Grade: Grade 2: A156.12 ANSI/BHMA
  • Handing: Reversible (Lock is set at LH by default (hinges left); can be reversed in the field for RH by a professional)
  • Batteries: 4 AA Alkaline Batteries (Included)
  • Face Bore: 2-1/8" (54mm)
  • Edge Bore: 1" (25mm)
  • Center to Center: 5-1/2"
  • Backset: 2-3/8" or 2-3/4"
  • Latch: Adjustable
  • Latch Front: RC (Round Corner)
  • Door Thickness: 1-3/8" (35mm) to 1-3/4" (44mm)
  • Strike: 2-1/4" (57mm) Full Lip Lockset and 1" (25mm) W x 2-1/4" (57mm) H Deadbolt; Radius Corner standard, other strikes available to order.
  • Strike Front: RC (Round Corner)
  • Thumbturn: Yes
  • Cylinder: 5-Pin Cylinder
  • Keyway 1: KW-1, 5-Pin
  • Number of Keys: 2
  • Weight: 10 pounds
  • Lock Dimensions:
    • Exterior: 10-5/8 x 2-1/2 x 2-5/8 inches
    • Interior: 12-1/8 x 2-13/16 x 2-5/8 inches
  • Approvals: FCC/IC; ANSI/BHMA Grade 2 – BHMA Certified; ANSI A117.1 Accessibility Code; UL/cUL listed for 90 minute fire doors
  • Warranty: 1 Year for Electronics and Finish; 3 Years for Mechanical
