Zipato Z-Wave Plus Multi-Sensor, Gen5 (U.S.)

$19.00 $43.63

37 available at this price.

WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov

Product Description

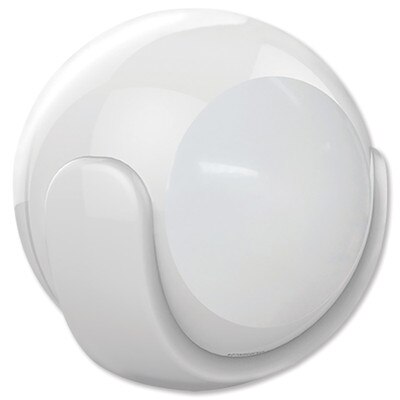

A motion detector and illuminance meter in one device. The Zipato PIR motion sensor (U.S.) offers elaborate security and ambient sensing options. The multifunctional nature of this product allows you to detect motion and measure the room's illuminance. When used with Zipato home automation controllers, it can be a part of any automation scenario created using Zipato Rule Creator. Accordingly it can be used to automatically trigger other Z-Wave devices when activated.

  • Motion and light sensors in one device
  • Can be used with various Z-Wave networks/controllers, regardless of the manufacturers
  • Very low power consumption
  • Low battery auto report
  • LED indicator
  • Easy installation

In The Box:

  • PIR Sensor
  • Holder
  • Battery (CR123A)
  • (2) Screws
  • (2) Screw Stoppers
  • Probe
  • User Manual

NOTES: Requires a Z-Wave network controller (sold separately). Actual detection range of the sensor can be influenced by environment conditions, such as moving objects within the sensor's detection area (trees blowing in the wind, cars passing by, etc.) False motion alarms may be caused by moving masses of air and heat as well. If sensor keeps reporting false alarms, install the sensor in a different location.

Tech Specs

  • Part Number: NE-NAS-PD01ZT.US
  • Protocol: Z-Wave – 908.4MHz US
  • Power: Battery (CR123A, included)
  • Standby Current: 16uA
  • Range:
    • Up to 164 feet (50 meters) outdoor
    • Up to 98 feet (30 meters) indoor
  • Detection Range: Up to 23 feet (7 meters)
  • Viewing Angle: 110 degrees
  • Operating Temperature: 32° to 104° F (0° to 40° C)
  • Storage Temperature: 32° to 140° F (0° to 60° C)
  • Dimensions: 1.8 x 1.8 x 1.9 inches (45 x 45 x 48 mm)
  • Certifications: UL, FCC, CE, RoHS
  • Warranty: 1-Year Standard

Product Docs
