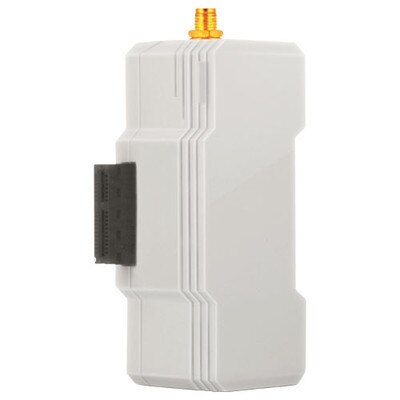

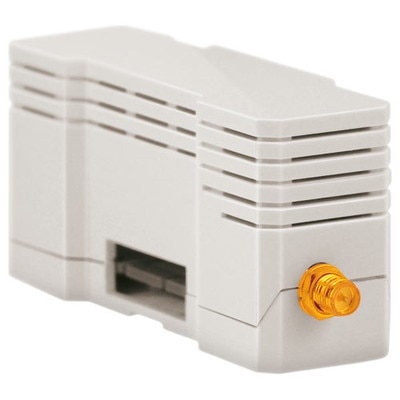

Zipato Zipabox EnOcean Expansion Module


IN STOCK! Ships same business day if ordered before 3pm PT

WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov

Product Description

By integrating the EnOcean standard, Zipabox can now support one of the most established wireless standards for building automation – free from the maintenance effort of changing batteries.

EnOcean-based products (such as sensors and, switches) perform without batteries and are engineered to operate maintenance-free. The EnOcean radio signals are based on the international standard ISO/IEC 14543-3-10 and can be transmitted wirelessly over a distance of up to 300 meters in the open field and up to 30 meters inside buildings. Users will benefit from a new level of flexibility when installing or expanding their individual intelligent home system.

In The Box:

  • EnOcean expansion module
  • Swivel antenna

Tech Specs

  • Part Number: ZBMENOV1
  • Communication Protocol: EnOcean
  • Radio Signals: International Standard ISO/IEC 14543-3-10
  • Wireless Range: Up to 100 feet (30m) indoors, 200 feet (70m) line of sight
  • Power Supply: Receives power from Zipabox
  • Mounting: Snaps into expansion slot of Zipabox
  • Dimensions: 86(L) x 28(W) x 46(H) mm
  • Color: White
  • Accessories: Swivel antenna, Antenna extension cable (optional)
  • Temperature Range:
    • Operating: 0 to 40° C (32 to 104° F)
    • Storage: -25 to 70° C (-13 to 158° F)
  • Humidity: 5 to 95 percent non-condensing
  • Regulatory Compliance:
    • Safety: UL
    • EMC: FCC, CE
    • RoHS
  • Warranty: 1 Year
