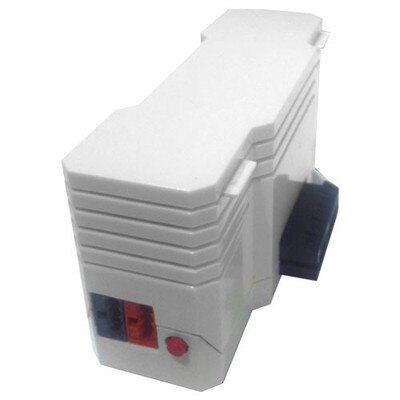

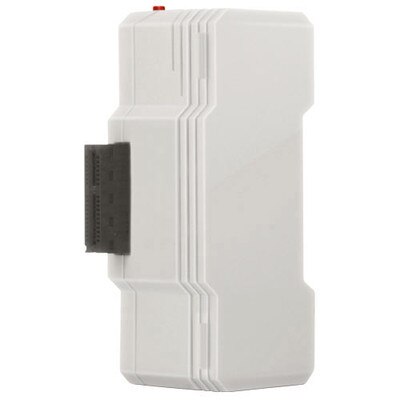

Zipato Zipabox KNX Expansion Module
Product Description
Interface to KNX/EIB both at the telegraph and data point levels (KNX Application Layer).
The KNX module allows connecting Zipato to KNX by the KNX Serial BAOS 820 module. In addition to the KNX transceiver, it contains a microcontroller with a certified KNX stack. It also electrically isolates the device from the bus. Communication with the module takes place via the FT1.2 serial protocol. KNX BAOS Module 820 serves as an interface to KNX/EIB both at the telegraph and data point levels (KNX Application Layer). BAOS stands for "Bus Access and ObjectServer".
Once after connected to KNX network Zipabox will allow users to remotely manage devices within a KNX network, add logical rules by using Zipato Rule Creator and to control other IP, Z-Wave, X10, Zigbee and other devices from within a KNX network
NOTE: KNX BAOS Module 820 required, not included.
Tech Specs
- Part Number: ZBMKNXV1
- Dimensions: 86(L) x 30(W) x 48(H) mm
- Color: White
- Communication Protocol: KNX Bus
- External Supply: 3.3-5V DC
- Bus Current Consumption: 9 mA
- Standby Power Consumption:<0.5W
- Ambient Temperature During Operation: -5 to 45 degrees C
- Storage Temperature: -25 to 70 degrees C
- Relative Humidity: 5 to 93 percent, non-condensing
- Regulatory Compliance:
- Safety: UL
- EMC: FCC, CE
- RoHS
- Safety extra low voltage: SELV DC 24 V
- Warranty: 1 Year
Electrical Safety
- Protection Classification: EN 60529 IP 20
- Safety Extra Low Voltage: SELV DC 30 V
- Galvanic Isolation: 2,5 kV DC
EMC Requirements
- Complies with EN 50090-2-2 and EN 50491-5-2 CE norm
- Complies with the EMC regulations (residential and functional buildings) and low voltage directive Certification
- KNX
Mechanical
- Housing: Plastic
- Weight: approx. 45 g Indicator
- LED: Signal-LED (green) for KNX-Connection Power supply
- Current Consumption: ca. 10 mA
Protocol
- Frame Format: FT1.2 (IEC 870-5-1 and 870-5-2)
- Protocol Telegrams: EMI2
- Protocol Data Points: BAOS Binary V1
- Capacity: Up to 250 group objects and 250 parameters
