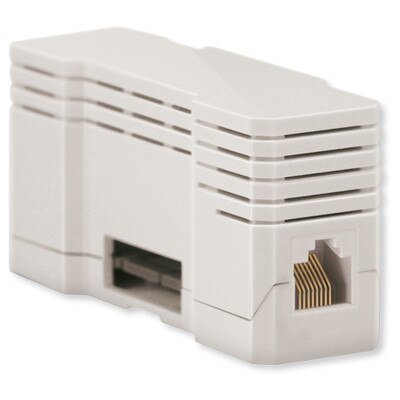

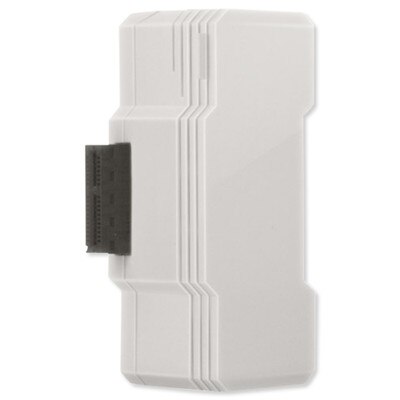

Zipato Zipabox P1 Expansion Module
Product Description
By using P1 expansion module, Zipabox can interconnect with an existing electricity meter which supports P1 standard. Connect the most popular household electricity meter devices onto your Zipabox. Monitor and control your household energy consumption from anywhere and any-time.
How Does the P1 Module Connect to the Zipabox and the Metering Device Which I Have?
The P1 module connects to the Slot2 of the Zipabox and then you connect your meter by using a RJ-11 cable which is included in the package with the P1 module.
How Many Different Values Does the P1 Show in the Web UI?
The number of values that a P1 module can show is dependent on the type of your metering system and what values it is setup to display.
In The Box:
- Expansion Module
- RJ-11 cable
NOTE: This device is meant for mounting only with Zipabox. P1 Module must always be installed in expansion slot 2 of Zipabox. If you have other module already connected onto slot 2, you can connect P1 Module on it. Other modules can be attached to P1 Module.
Tech Specs
- Part Number: ZBM.P1
- Communication Protocol: P1
- Power: Powered by Zipabox
- Operating Temperature: 32° to 122°F (0° to 50°C))
- Operating Humidity: 0 to 95 percent RH
- Dimensions: 1.14 x 3.43 x 1.81 inches (29 x 87 x 46 mm)
- Weight: 2.19 ounces (62g)
- Approvals: FCC, CE
- Warranty: 1 Year
