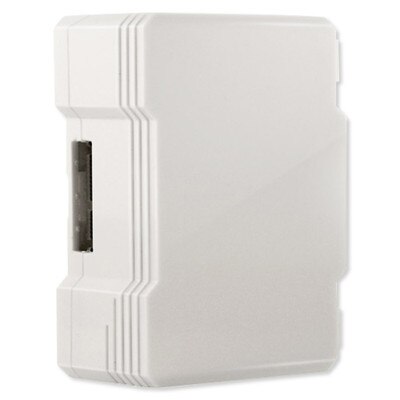

Zipato Zipabox Power Expansion Module


IN STOCK! Ships same business day if ordered before 3pm PT

WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov

Product Description

The Zipato Zipabox Power expansion module provides support for electric circuit measuring. It measures power consumption of up to four channels through current clamps (sold separately) that attach to its power cables. This power module reports measurements to the cloud server where you can visualize and analyze energy consumption. This will allow you to use real time measurements to create energy saving rules in the Zipato Rule Creator.

In The Box:

  • Zipabox Power Expansion Module
  • Manual

Notes: Requires connection to the Zipato Zipabox or Zipabox2. Current Clamps not included. Do not use the Zipabox power adapter with the Power Module – it may cause permanent damage to your Zipabox.

Tech Specs

  • Part Number: ZBM.POWER
  • Input: 90-265 VAC, 50-60 Hz
  • Output: 12VDC, 1.5A (tied to internal Zipabox power bus)
  • Efficiency: High active mode efficiency (>85%)
  • EMI: Complies with standards
  • Frequency: 908.42 MHz
  • Operating Temperature Range: 32°F to 104°F (0°C to 40°C)
  • Storage: -13°F to 158°F (-25°C to 70°C)
  • Humidity: 5% to 95% non-condensing
  • Dimensions: 2.2(W) x 1.9(H) x 3.4(L) in (55 x 48 x 86 mm)
  • Certifications: EMC, FCC, CE
  • Warranty: 1 Year
