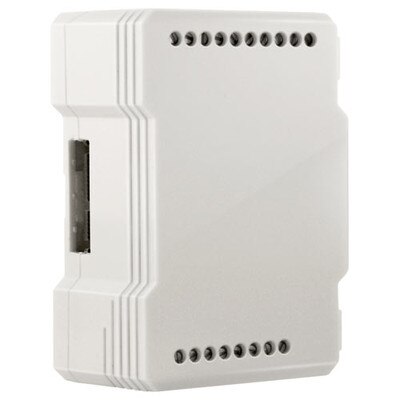

Zipato Zipabox Security Expansion Module


IN STOCK! Ships same business day if ordered before 3pm PT

WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov

Product Description

Connecting wired security sensors to the Security Module makes Zipabox one of the most advanced wired security panels on the market. Robust wired installation combined with advanced Zipabox logic possibilities provide a perfectly secure and comfortable environment in any building.

The low price and high reliability of wired sensors provides an excellent opportunity for installing Zipato in new homes. With 6 on-board zone inputs, siren output and input, PGM output and lead acid battery charger, the Security Module allows you to either replace your existing alarm panel with Zipabox, or use your existing alarm panel alongside Zipabox, sharing sensors or sirens, in any conceivable combination.

  • 6 on-board wire zones (expandable to 24 with additional Security Modules)
  • 1 siren input (use Zipabox as a siren in an existing alarm system)
  • 1 on-board solid state relay PGM output, negative or positive triggering (user selectable)
  • 1 supervised bell/siren output
  • 1 supervised auxiliary power output
  • 1 general purpose serial port – user selectable between RS-232 and half duplex RS-485 mode
  • 1 lead-acid battery charger (charges external LA battery)

Tech Specs

  • Part Number: ZBMSECURITYV1
  • Power: Powered by Zipabox
  • Battery: External 12VDC, 7Ah minimum
  • Aux. Power: 12VDC 600mA
  • Bell/Siren Out: 800mA
  • Siren In: 12VDC, 20mA
  • PGM Out: 100mA solid state relay with selectable trigger
  • Dimensions: 86(L) x 55(W) x 48(H) mm
  • Color: White
  • Temperature Range:
    • Operating: 0 to 40 degrees C (32 to 104 degrees F)
    • Storage: -25 to 70 degrees C (-13 to 158 degrees F)
  • Humidity: 5 to 95 percent non-condensing
  • Regulatory Compliance:
    • Safety: UL
    • EMC: FCC, CE
    • RoHS
  • Warranty: 1 Year
