Zipato Zipabox2 Home Automation Controller

$137.11 $157.81

29 available at this price.

WARNING: Cancer and Reproductive Harm – www.P65Warnings.ca.gov

Pay in 4 interest-free payments. Learn More.

Product Description

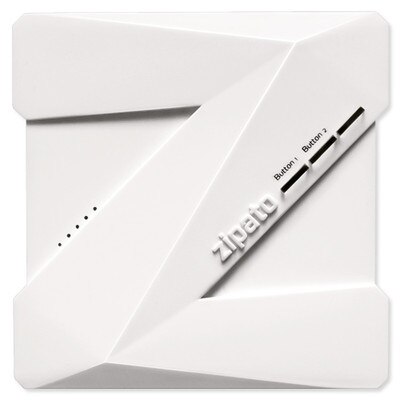

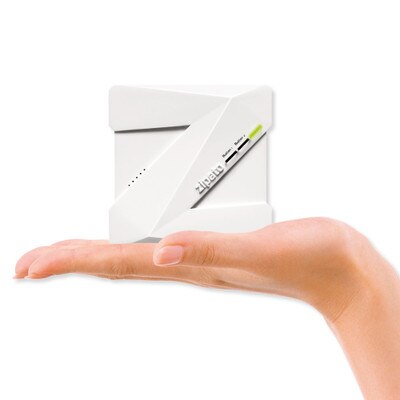

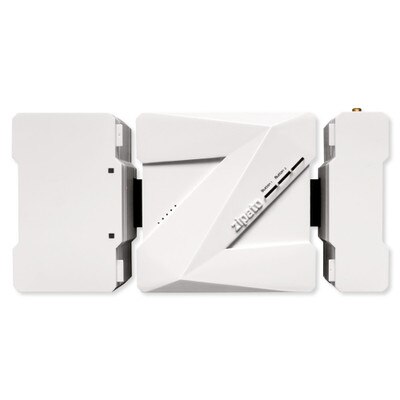

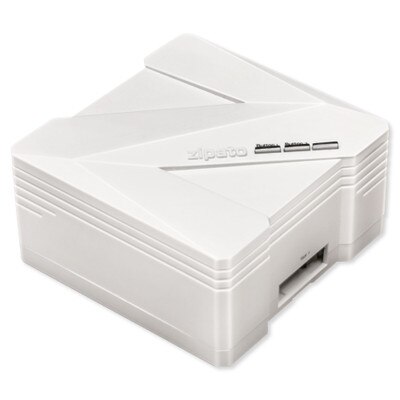

The Zipabox 2 offers the benefits of a connected smart home in a modular smart controller. This next-generation automation and security hub boasts the ability to connect to a wide spectrum of smart devices across multiple communication protocols including Zigbee, EnOcean, KNX, WiFi, Bluetooth, and more thanks to its unique modular design. With the purchase of additional snap-in modules, you can add multiple smart devices, backup power, increased memory and more to your home network.

It comes included with easy-to-use but a powerful web-based interface where you can monitor all connected devices and create your own automation scenarios using Zipato Rule Creator. The Zipato Rule Creator can be accessed from any internet-enabled iOS or Android device such as your PC, tablet or mobile phone.

Once configured, the Zipabox 2 works stand-alone, but also features cloud support for advanced monitoring, messaging and programming services. The Zipato Rule Creator online web portal uses an intuitive user interface that is easy for customers to program their own home rules without any previous programming experience.

Supported Features Include:

Home Automation

  • Scheduled or responsive lighting and automation scenes
  • Configure settings and activate devices remotely from smart devices or web portal
  • Weather-based or scheduled temperature zones

Home Security

  • Remote lock/unlock doors, garages, or gates
  • Receive mobile alerts when sensors are triggered
  • Activate alarms when motion is detected or glass broken


  • Remote dimming and on/off switching
  • Schedule lights to turn off/on at sunrise/sunset
  • Connect lights to motion sensors to save energy

Environmental Reporting

  • Use environmental and temperature sensors to adjust connected thermostats
  • Create scheduled or responsive temperature zones throughout your home
  • Shut off water lines when connected leak sensors detect liquid in monitored zones

Access Control

  • Remotely lock/unlock connected smart locks
  • Check status of monitored doors or windows
  • Receive alerts when device status changes

Remote Operation

  • Configure settings and check device status via mobile app or online web portal
  • Create schedules, scenes, and add/remove devices easily with the Zipato Rule Creator

In The Box:

  • Zipabox 2
  • Ethernet Cable
  • Power Adapter
  • Z-Wave Antenna
  • User Guide

NOTE: Internet connection required. Add-on expansion modules sold separately.

Tech Specs

  • Part Number: ZB2.MAIN
  • System:
    • ARM Cortex-A7 Quad-Core, 1.3GHz CPU
    • 256MB RAM
    • 4GB Flash memory
  • Network:
    • Ethernet 100Base-TX
    • WiFi 802.11 b/g/n
    • Bluetooth 4.0
    • Optional radio modules (Z-Wave+, Zigbee, EnOcean, 433 MHz)
  • Operating System: Linux (4.1x kernels)
  • Power:
    • Power input: 9-12VDC
    • Internal backup battery (900mAh)
    • Power supply input: 100-240VAC, 50/60Hz
    • Power usage: Idle: 1.2W, Max 2.4W
    • Optional Power over Ethernet
  • Environmental:
    • Operating Temperature: 32° to 104°F (0°to 40°C)
    • Storage Temperature: -13° to 158°F (-25° to 70°C)
    • Humidity: 5 to 95 percent, non-condensing
  • LEDs:
    • 2 programmable buttons
    • 2 programmable green LEDs
    • 1 programmable RGB LEDs
  • I/O: USB 2.0
  • Certifications: UL, EMC: FCC, CE, RoHS
  • Physical Dimensions: 3.38 L x 3.38 W x 1.85 H
  • Automation Options:
    • Remote automation software
    • Online remote control interface
  • Accessories:
    • CAT5e UTP patch LAN Cable
    • Optional Antenna included with add-on modules
  • Warranty: 1 Year
