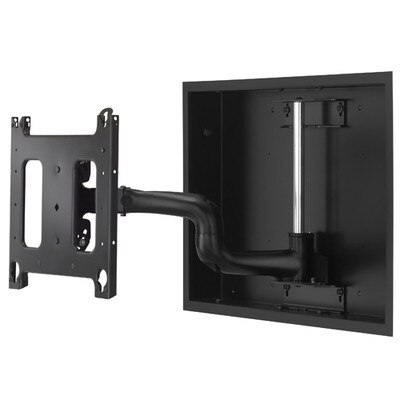

Chief Large Low-Profile In-Wall Swing Arm Mount, 22"

$452.80
Item # CMPWRIWUB

Order now and we'll ship usually within 1-2 business days.

WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov

This is a heavy and/or oversized item and does not qualify for our shipping promotion.

An in-wall swing arm designed to create a low-profile installation.

  • Ships fully assembled to save on installation time
  • Must order PAC501B In-Wall Accessory
  • Easily installs into PAC501B to create an ultra low profile installation
  • Extends over 22" (569 mm) for viewing from any angle

NOTE: Must order PAC501B In-Wall Accessory separately.

  • Part Number: PWRIWUB
  • Certifications: UL
  • Color: Black
  • Lateral Shift: 11.5 inches (292mm)
  • Maximum Screen Thickness: 22 inches (558.8mm)
  • Minimum Depth: 0.5 inches (12.7mm)
  • Mounting Pattern Compatibility (Universal Versions): 200 x 200mm – 800 x 517mm
  • Notes: Requires PAC501B. PACHFK1 available. Depth and Extension do not include interface bracket (adds 0.5 – 1.5")
  • Orientation: Landscape, Portrait
  • Overall Dimensions: 20.0(H) x 30.0(W) x 4.5(D) inches (508 x 762 x 114mm)
  • Post-Installation Leveling (Roll): Yes
  • Weight: 45.8 pounds
  • Solution Type: Universal
  • Tilt: +2 degrees, -15 degrees
  • Typical Screen Sizes: 37 to 55 inches
  • Wall Stud Compatibility: 16 inches
  • Weight Capacity: 125 pounds (56.7kg)
