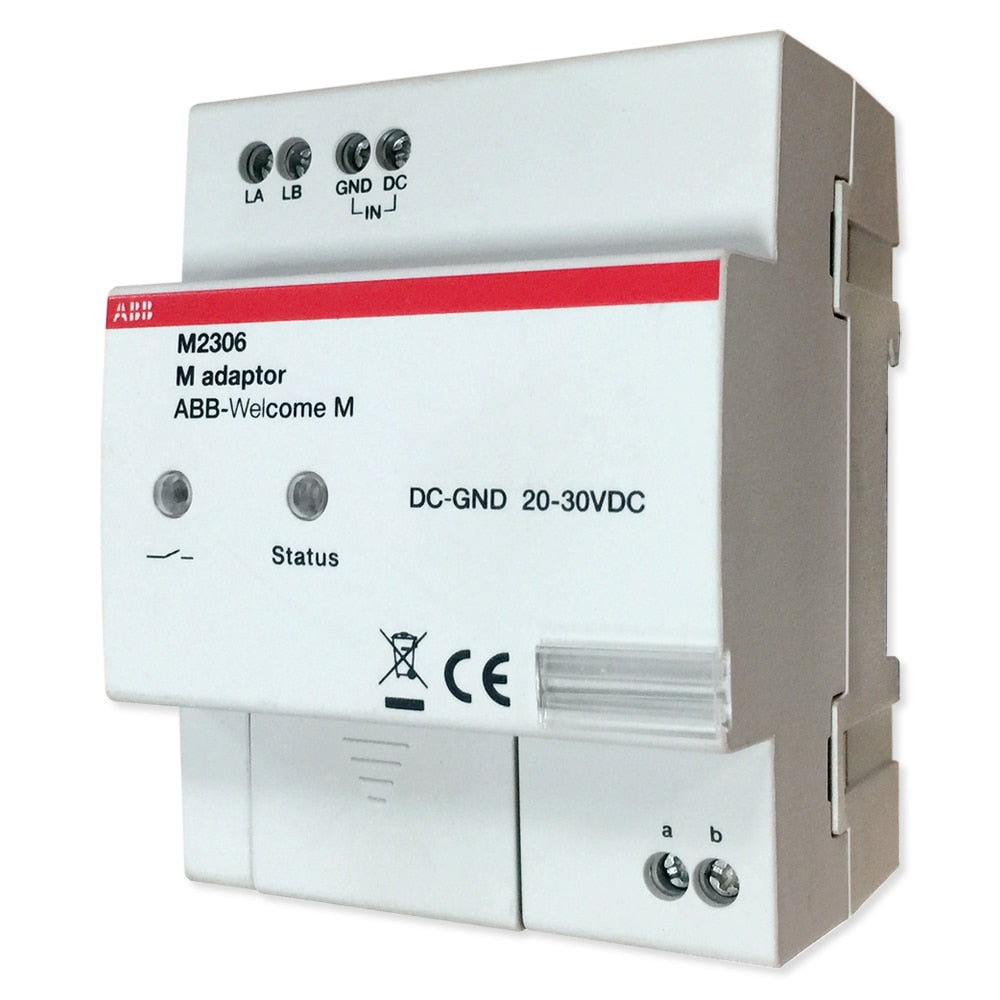

ABB-Welcome Elevator M Adaptor

The lift control modules include the M adaptor (M2306) and lift control relay module (M2307). These two devices together make the control of the lift only to authorized floor possible.

In case the resident presses the "unlock" button when receiving the guest's call from outdoor station, or the authorized user swipes the registered card or enters the correct password, the lift will go down automatically to the floor of the outdoor station. Then the lift will go to the dedicated floor where this resident lives, the lift cannot go to other floors even pressing the other floors' button in the lift.

The configuration should be done through the dedicated configuration software by connecting the M adaptor with PC/Laptop.

• Two function: lift control module and PC adaptor
• Enhance security to allow authorized visitor/resident to ONLY go to the designated floor while unauthorized visitors cannot activate any flo
