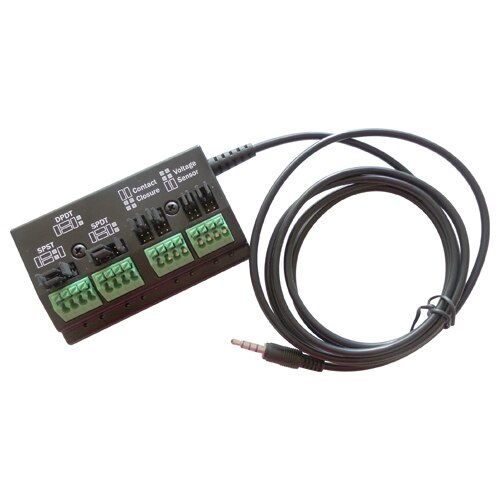

Global Cache Flex Link Relay Cable (Contact Closure)

The Flex Link Relay and Sensor cable is an input/output cable for use with the iTach Flex. It provides relay outputs and sensor inputs to control and monitor the status of electronic devices using relay, contact closure, and current/voltage sensing. External devices are connected via push-release terminal blocks. The enclosure can be mounted directly on a DIN rail, allowing for simple integration with external relays.

• Four configurable relay outputs; four configurable sensor inputs.
• Outputs: Configurable as contact closure relay/SPST, SPDT, DPDT.
• Inputs: Configurable as contact or current/voltage sensing.
• Configurable/controllable from setup web page.
• Din rail mountable.
• No power supply required.
• Cable/Connector: 4.5 feet, 3.5 mm plug connects to Flex Link Port.

The relay outputs are fully-configurable to operate as a number of different standard relay types, and are capable of controlling a wide range of devices. The sensor inputs are configurable to allow detection of contact closure, as well as AC and DC voltage.

Available for sale only in the U.S.
