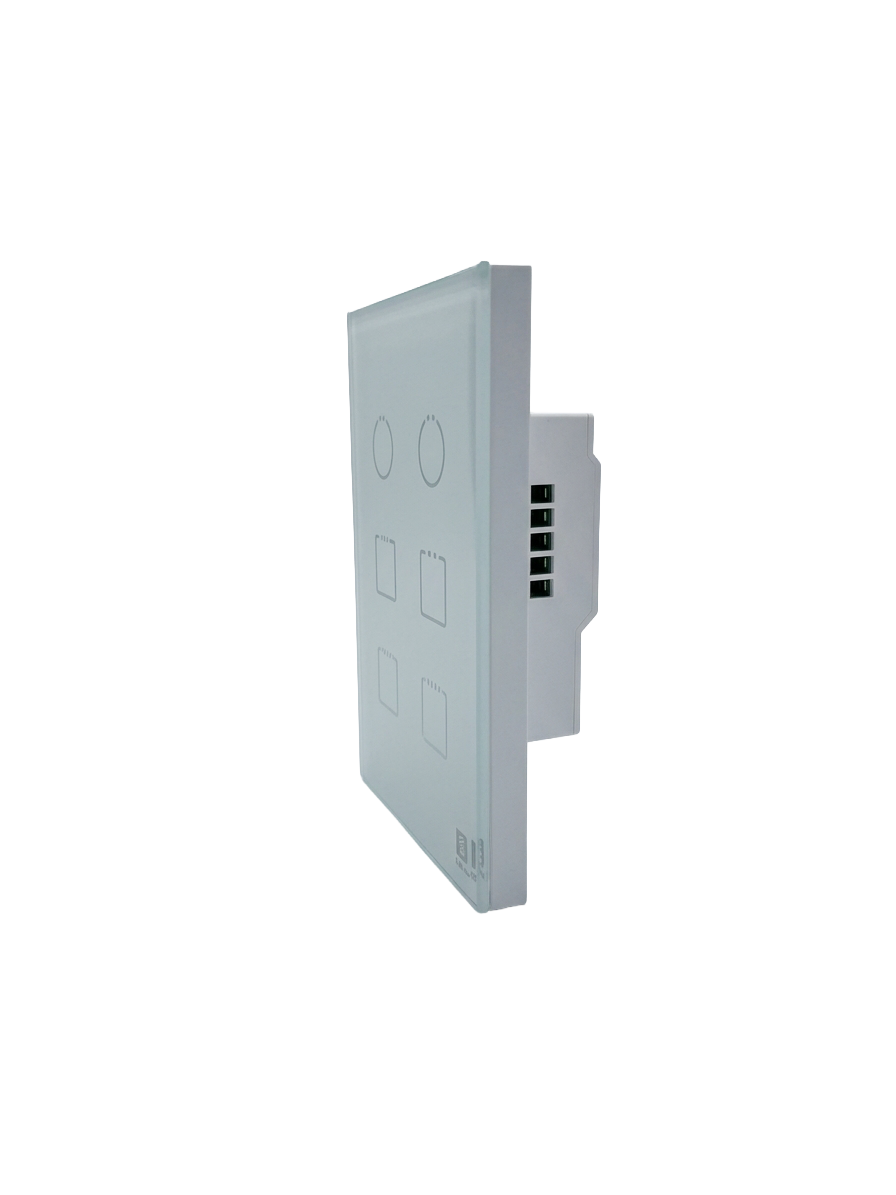

Horus Automations Double Touch Panel & Scene Controller

Combine lighting control and scene automation in one sleek, glass touch panel. Featuring two relay channels for direct control of lighting circuits and four dedicated scene keys, this Z-Wave 800 Series device offers convenient access to everyday lighting settings and automated routines. With Z-Wave mesh network repeating, direct device association, and customizable settings, it provides flexible control for modern smart home installations.

Key features

• Two relay channels for direct load control. Four additional scene keys.
• Scene keys send Central Scene and Scene Activation commands for short and long press.

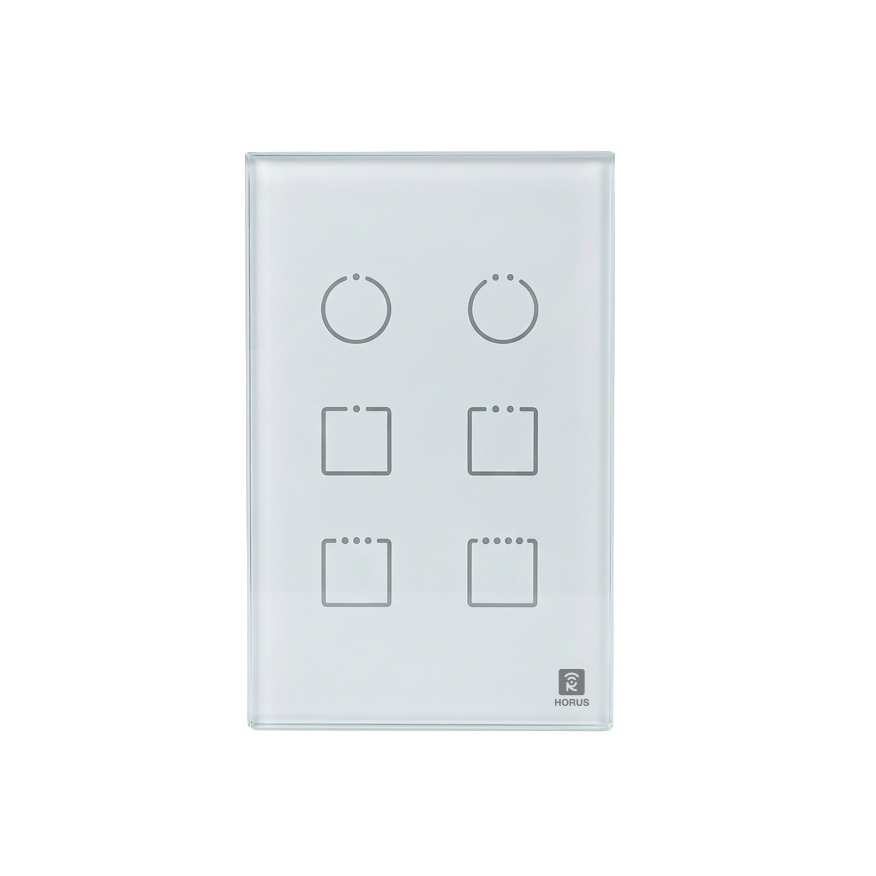

• Tempered safety glass panel with an LED indicator on each key.
• Z-Wave 800 Series radio. Acts as a repeater in the Z-Wave mesh network.
• Direct association: each key can control up to 5 Z-Wave devices.
• Configurable beeper, LED brightness, key modes, and auto-off timers.

Key specifications

• Model: HSC-S514
• Keys: 6 (2 relay keys, 4 scene keys)

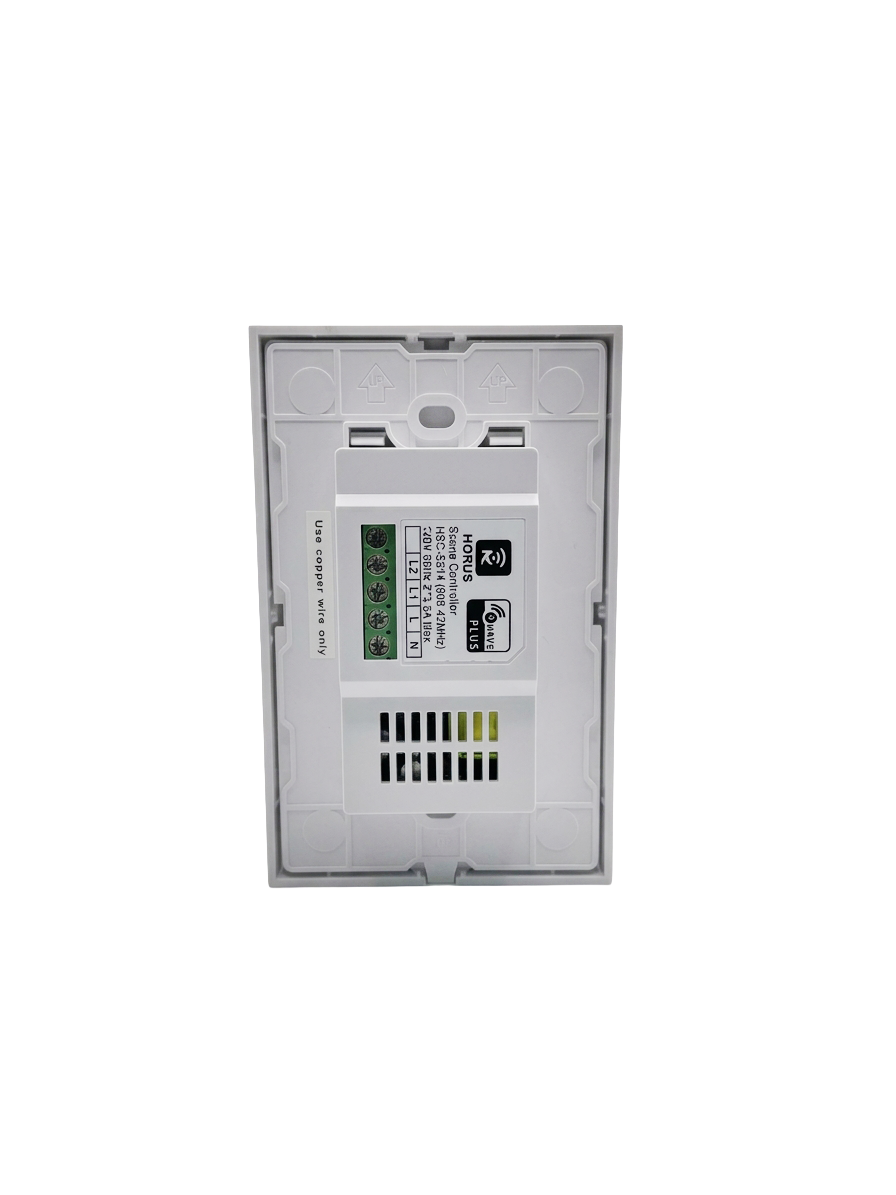

• Power supply: 90 to 250 VAC, 50/60 Hz. Neutral wire required
• Maximum load: 2 x 3.5 A resistive, 2 x 2 A capacitive/inductive (per channel)
• Wireless protocol: Z-Wave 800 Series, 908.42 MHz (US)
• Finish: White tempered glass
• Use: Indoor only
