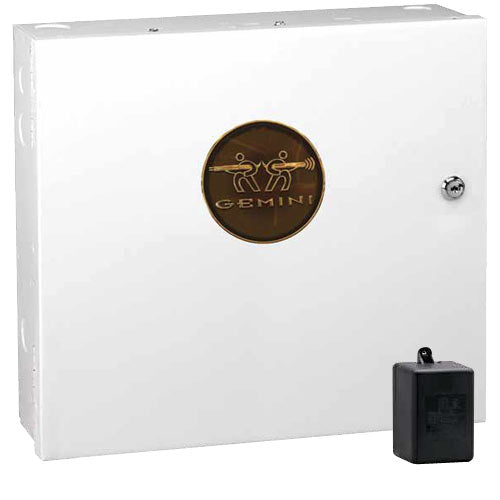

Napco Gemini P801 Security Panel, 9 Zones

Napco's economical 9-Zone Hybrid Gemini P801 Series, sporting your choice of numeric or custom alpha keypads has many innovative features, including programmable EZ-Arm with new One-Touch Stay and Away easy operation. The affordable P801 panel boasts 9 programmable zones, including 2-wire fire, with no zone doubling. Programmable zones on the GEMP801 panel include: 6 hardwire or wireless zones, 2 wireless zones and 1, 2-wire fire zone.

The panel package, model # GEMP801, includes the hybrid control and a plug-in transformer. The Gemini P801 Series features 8 user codes and 50 event log. Plus, it supports all the same standard Gemini Transmitters used with other Gemini panels. Wireless transmitter signal strength is also audibly and visually reported right at a keypad. Programming for the panel is easy with the Napco PCD-WINDOWS software.

• 9 programmable zones, including 2-wire (No zone doubling)
• 6 Hardwire or wireless zones plus: 2 wireless zones plus 1 2-wire fire zone
• Use 2 optional zones at GEMRP8LCD Custom Alpha Keypad
• Uses GEMRECVXP8 wireless receiver
• 8 individually reporting user codes
• 50 event log
• PC programmable with PCD-Windows
• Line and bell-cut supervision
• Double reporting and backup reporting
• EZ wire full-size terminal strips

All Gemini hybrid controls feature:

• Multiplex expandability using built-in EZMs in custom alpha keypads or 8-zone expansion modules (except GEM-P800)
• Up/Downloading, including unique PC-preset unattended method
• EZ-Programming mode at keypad
• Choice of Gemini RF receivers and transmitters
• Multi-stage lightning protection
• Event log with open/close suppression
• NetLink intranet/internet alarm reporting option
• X-10 Support with optional GEM-X10 interface
• Telco line cut supervision
• Support for VOIP (voice over internet protocol) communications
• Support all major communication formats and secondary pager format
• SIA CP01 compliant versions available
• Include transformer
