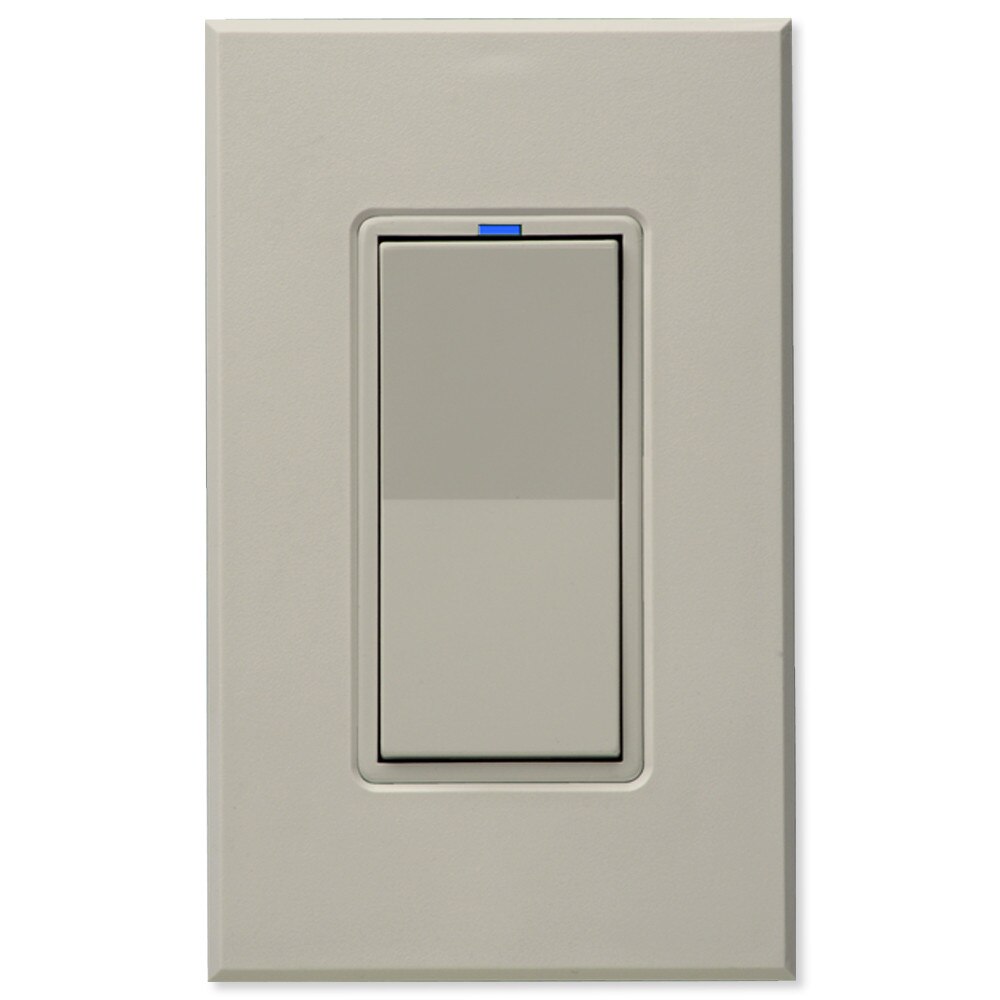

PCS 0-10V Relay Dimmer Wall Switch, 277V

Install On/Off/Dim controls by replacing your standard LED light switch with the PCS 0-10V Relay Dimmer Wall Switch, 277V. Powerline Control Systems, Inc. has patented a new method called Relay Dimming that offers many advantages. Relay Dimming uses the standard mechanical relay in wall switches or occupancy sensors to send messages to our simple low-cost receiver modules installed in any standard LED fixture with a 0-10V driver. Functioning together, smooth dimming to any level is easily achieved.

• Full featured dimming
• Single-tap: top 100% – bottom: Off. Double tap: top 40% – bottom 10%
• If needed, field adjustable levels in switch to " tune " for the site
• No new wires means a 2-person job is now a 1-person job
• Bid the job without investigating wiring complexity
• No programming or commissioning needed – operates right after install
• Parts cost equal to the older, less functional method of using a low-voltage switch
• Switch has occupancy sensor input if needed
• Switch has 3-way (traveler) control possible with available remote-switches
• The easiest least-expensive way to meet Title 24 dimming requirement
• Win retrofit and new install jobs with less effort and better function

In The Box:

• Relay Dimmer Wall Switch

NOTES: Neutral wire required. Requires the RM-0-10V, sold separately, to operate LED fixtures. Rated for indoor use only. Wallplate not included.
