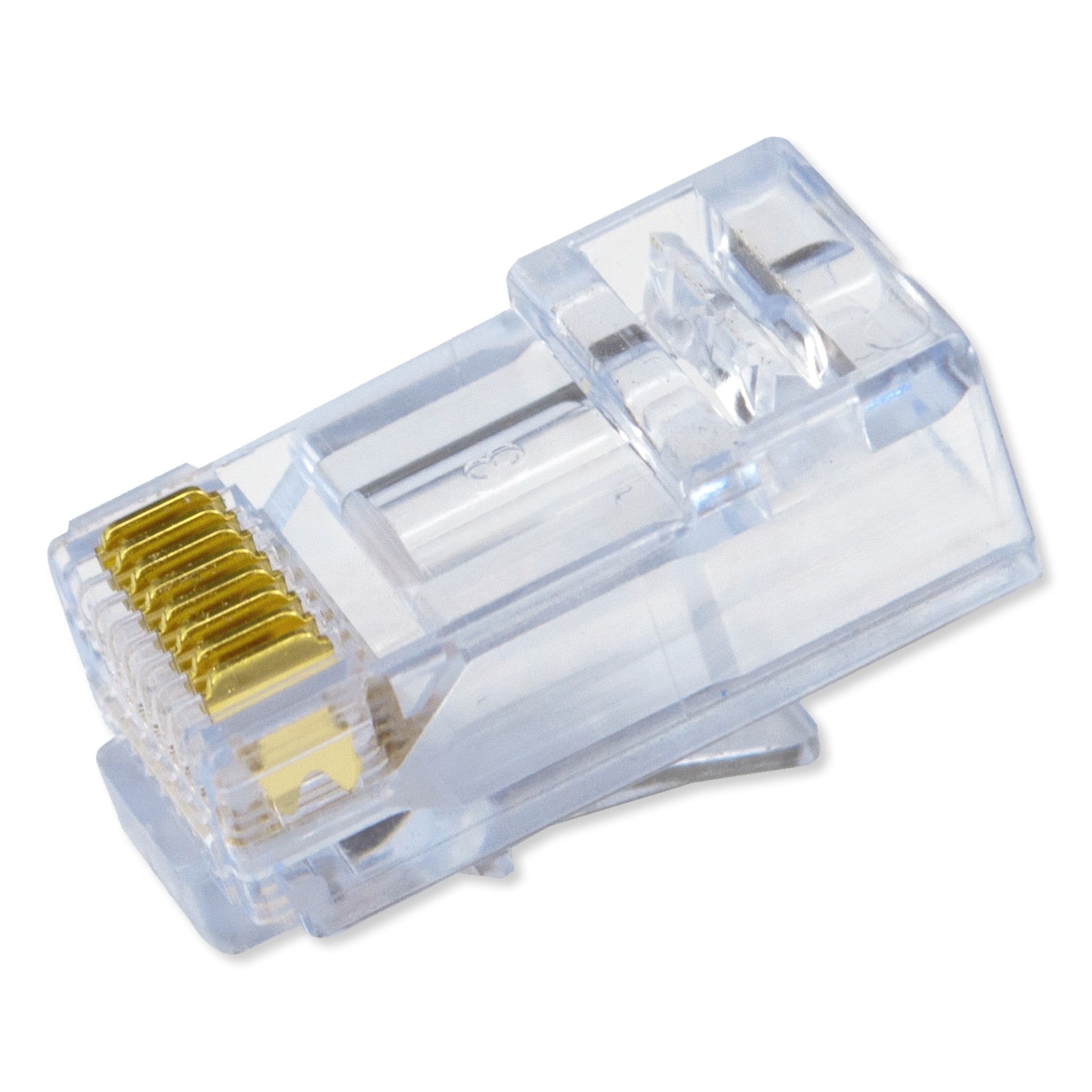

Simply45 Standard 8P8C RJ45 Modular Plug for Cat5E UTP Unshielded (100 Pack)

The Simply45 S45-1000 Standard WE/SS (8P8C) RJ45 modular plugs incorporate the following features:

Single Piece Design: The S45-1000 is a single-piece unshielded Standard WE/SS RJ45 modular plug for use with unshielded LAN cables. No-load bar required. Supports performance standards: ANSI/TIA 568.2-D for Cat5e; ISO/IEC 11801 Class D; and applicable patch cord standards for Cat6 and Cat5e.

3 Prong Pin Design with 50µ of True 24ct Gold Plating: All Simply45® Standard WE/SS RJ45 modular plugs use only 50µ 24ct gold plated 3-Prong pin design instead of a 2-Prong design as found on most other pass-through RJ45 modular plugs. A 3-Prong pin provides 3 points of contact with the copper wire conductor instead of 2. This improves electrical performance and signal integrity. A 3-prong pin also holds stronger onto the wire conductors.

Solid and Stranded LAN Cables:
