Speco Zip Kit: 8-Channel NVR with 4 Bullet Cameras
Product Description

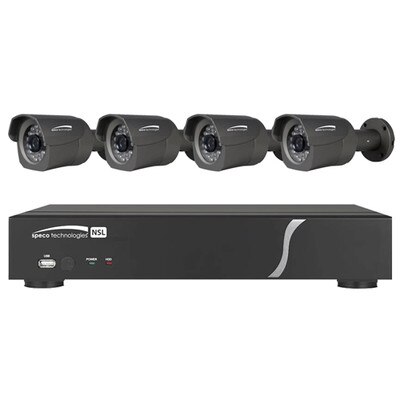

8 Ch. Plug & Play NVR and IP Camera Kit:
- 1 x 8-channel NVR with 8-channel built-in PoE, 2TB
- 4 x Full HD 1080p outdoor IR bullet cameras
NVR Features:
- EZ Set-Up Wizards: one click wizard guides you to set up essentials of the system in a logical and easy to understand sequence.
- – Date/Time – Recording method – Recording video quality – Network – Port forwarding
- EZ Camera: quickly discovers and installs IP cameras
- EZ Search: quickly search events from thumbnails
- EZ Copy: auto copy what you are playing onto a USB flash drive
- Built-in PoE IEEE 802.3af
- Video Out: 1 HDMI, 1 VGA
- Plug and play feature with Speco's IP cameras
- Dual network ports for isolating IP camera network and remote network traffic
- Network video recorder with free Speco DDNS server
- Full HD (1920 x 1080) recording and playback
- Built-in S.M.A.R.T. Technology (Self-Monitoring, Analysis and Reporting Technology for HDD)
- Network accessible via SpecoTech Multi-Client Software, SecureGuard CMS and Speco Player Mobile Viewer
- PC and MAC compatible
- 5 year warranty
Camera:
- Full HD 1080p
- 3.6mm fixed lens
- Real-time video up to 30fps
- PoE IEEE 802.3af
- Dual streaming
- Weather/vandal resistant
- 5 year warranty
In The Box:
- 1 x 8-Channel NVR (N8NSL2TB)
- 4 x IP Bullet Cameras (O3VLB1K)
Available for sale only in the U.S.
Tech Specs
Bullet Cameras (O3VLB1K)
- Image Sensor: 1/3" CMOS, 3MP
- Maximum Resolution: 2304x1296
- Minimum Illumination: 0 lux @F2.0 (IR on) / 0.37 lux @F2.0 (IR off)
- S/N Ratio: 50dB
- Motion Detection: Yes
- Day/Night: IR-cut filter
- DNR: 3D
- IR Range: 98' (depending on scene reflection)
Operating / Physical
- Power Supply: PoE or 12VDC (power supply not included)
- Power Consumption: 4W
- Operating Temperature: -20°F to 140°F (-28°C to 60°C)
- Weight: 13 oz.
- Dimensions: 2.75" (Dia.) x 6.49" (L)
- NVR Weight: 4 lbs.
- NVR Dimensions: 11.7" (W) x 2" (H) x 8.25" (D)
Network Video Recorder (N8NSL2TB)
- Power Source: 48VDC, 1.2A
- Operating Temperature: 41° to 104° F (5 to 40° C)
- Storage Temperature: 14° to 122° F (-10 to 50° C)
- Weight: 4 pounds
- Dimensions: 11.7(W) x 2.0(H) x 8.25(D) inches
- Warranty: 3 Years
Video Input
- Max. IP Channels: 8
- Resolution: Max. 1920 x 1080
Video Output
- HDMI: 1 HDMI (1280 x 720, 1920 x 1080)
- VGA: 1 VGA (1280 x 720, 1920 x 1080)
Audio
- IP Camera Inputs (Network): 8
- Local Output (RCA): 1
- Codec: G.711
Recording
- Compression: H.264 (baseline, main and high profile)
- Resolution:
- 1080p: 240fps
- 720p: 240fps
- Recording Mode: Continuous / Motion / Sensor / Schedule / Manual / Continuous + Motion / Continuous + Sensor
- Pre-Recording: Max. 20 minutes
- Post-Recording: Max. 60 seconds
Playback
- Search: EZSearch, Date/Time, Event, Archive, Log
- Multi-Decoding: 1, 4, 8
- Playback Speed: x0.25, x0.5, x2, x4, x8, x16, x32, x64
Backup
- Media: USB Drive, External HDD, Network
- File Format: BMP, AVI, Proprietary Format
- Large Backup: Yes (max. 24 hours)
Storage
- Capacity of 1 HDD: 2TB
- Internal HDDs: 1
- e-SATA: No
- Front USB: 1
- Rear USB: 1
User
- I/F Input: Method IR, Mouse, Keyboard Controller
Event
- Sensor In:
- IP Camera (Network): 8
- Local Input (Terminal Block): None
- Local Alarm Output (Terminal Block): None
- Motion Detection: Yes, from IP camera
Network
- LAN (IP Camera, Auto Connection): 8 (802.3af PoE)
- WAN (IP Camera, Remote Access): 10/100Base-T
- Protocols: TCP/IP, UDP, DHCP, HTTP, NTP, SMTP, RTP, RTSP
- Max. Throughput: 20Mbps
Network Access
- Mobile Viewer: iPad / iPhone / Android
- PC Web Viewer: Internet Explorer, Chrome, Firefox, Safari
- PC Client: SpecoTech Multi-Client Viewer and SecureGuard CMS
- MAC Client: Speco Client for MAC and SecureGuard CMS
- Remote Setup and Upgrade: Yes
Product Features
- Digital Deterrent: Default + up to 8 audio files
- Digital Zoom: Yes
- DLS (Daylight Savings): Yes
- S.M.A.R.T: Yes
- Internal Beep: Yes
- Multi-Language: Yes
- Dynamic DNS: Yes (free Speco DDNS)
- Email Notification: Yes
- NTP (Network Time Protocol): Yes
