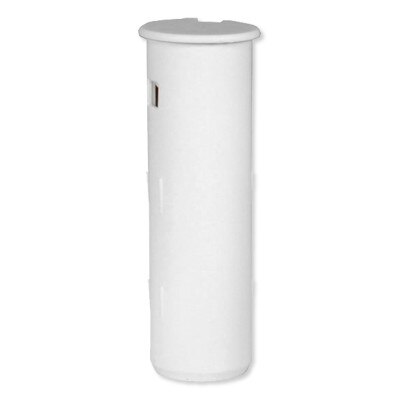

2GIG Wireless Recessed Door Contact
Product Description

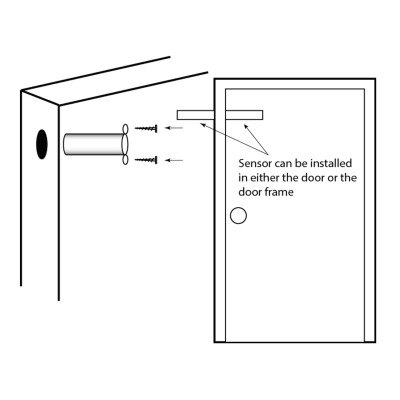

The 2GIG-DW20R-345 is the industry's most flexible supervised recessed door/window contact, allowing a multitude of applications while hiding the transmitter within a door or window frame. The 2GIG-DW20R-345 uses a replaceable lithium battery and should last 5 years under normal usage
- Compact size, only 2-1/2" long
- Fully supervised
- Rare earth magnet
- Lithium battery
- Transmits 345 MHz
- ETL Listed
In The Box:
- Sensor
- Magnet
- 2 x Screws
- 2 x Magnet Caps
Tech Specs
- Part Number: 2GIG-DW20R-345
- Wireless Signal Range: 450 feet, open air, with 2GIG Wireless Control Panel
- Code Outputs: Alarm; Alarm Restore; Supervisory; Low Battery
- Transmitter Frequency: 345.000 MHz (crystal controlled)
- Transmitter Frequency Tolerance: ±15kHz
- Transmitter Bandwidth: 24kHz
- Modulation Type: Amplitude Shift Keying-On/Off Keying (ASK-OOK)
- Unique ID Codes: Over one million different code combinations
- Supervisory Interval: 70 minutes
- Peak Field Strength: Typical 50,000 uV/m at 3m
- External Input Sampling Current: 20 uA
- External Input: Accepts N/C dry contact devices
- Reed Switch Magnetic Sensitivity: 10 to 20 amp turns
- Reed Sensitivity: 0.625 in. (1.59 cm) minimum gap, 0.85 in. (2.16 cm) typical
- Magnet Dimensions: 0.5(H) x 0.75(D) inches (1.27 x 1.9 cm) typical
- Magnet Type: Rare earth
- Sensor Dimensions: 2.57 x 0.75 inches (6.53 x 1.9 cm)
- Weight: 1.25 ounces (35.4 g), including battery and magnet
- Housing Material: ABS plastic
- Color: White
- Operating Temperature: 32° to 104° F (0° to 40° C)
- Relative Humidity: 5 to 95 percent Non-Condensing
- Battery: One Panasonic CR2032 or equivalent Lithium battery (installed)
- Included Accessories: Two magnet cap styles (Normal and Screw type); Two Phillip's flat-head screws
- Warranty: 2-Year Limited
