2GIG Wireless Thin Door/Window Contact
Product Description

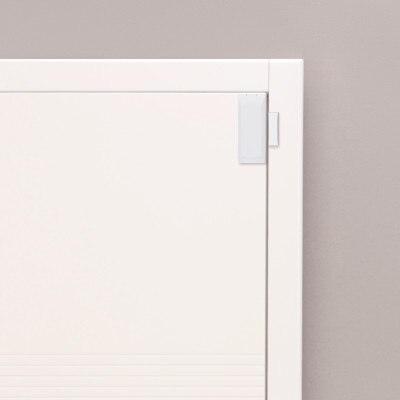

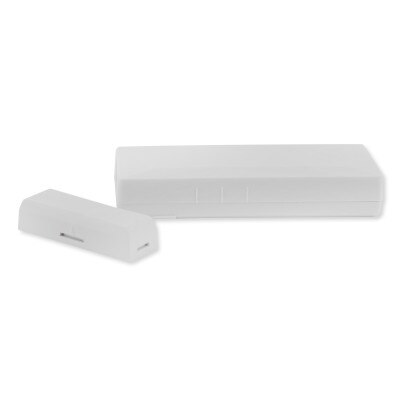

This 2GIG Thin Door/Window contact is perfect for narrow applications as the sensor is only 3/4'' wide. It can be installed on doors, windows, and many other objects that open and close. The sensor transmits signals to the Control Panel when a magnet mounted near the sensor is moved away from or closer to the sensor. The sensor has an external input that accepts N/C dry contact devices. The sensor is also equipped with a cover tamper for additional security.
- For narrow applications, sensor is only 3/4" wide
- Fully supervised
- Rare earth magnet
- Supports internal and external contacts
- Can be used for 2 zones of protection
- Lithium battery
- Transmits 345 MHz
- ETL Listed
In The Box:
- D/W Sensor
- Magnet
- 2 x Screws
- 3M Tape
- 12" Wire Lead
- 2 x CR2032 Batteries
Tech Specs
- Part Number: 2GIG-DW10-345
- Wireless Signal Range: 350 feet, open air, with 2GIG Wireless Control Panel
- Code Outputs: Alarm; Alarm Restore; Supervisory; Low Battery; External Alarm; External Restore; Tamper; Tamper Restore
- Transmitter Frequency: 345.000 MHz (crystal controlled)
- Transmitter Frequency Tolerance: ±15kHz
- Transmitter Bandwidth: 24kHz
- Modulation Type: Amplitude Shift Keying-On/Off Keying (ASK-OOK)
- Unique ID Codes: Over one million different code combinations
- Supervisory Interval: 70 minutes
- Peak Field Strength: Typical 36,000 uV/m at 3m
- External Input Sampling Current: 20 uA
- External Input: Accepts N/C dry contact devices
- Reed Switch Magnetic Sensitivity: 10 to 20 amp turns
- Reed Sensitivity: 0.625 in. (1.59 cm) minimum gap, 0.85 in. (2.16 cm) typical
- Magnet Dimensions: 1.3(L) x 0.435(W) x 0.312(H) inches (3.3 x 1.1 x 0.79 cm) typical
- Magnet Type: Rare earth
- Sensor Dimensions: 2.59 x 1.03 x 0.49 inches (6.58 x 2.62 x 1.24 cm)
- Weight: 1.1 ounces (31.2 g), including battery and magnet
- Housing Material: ABS plastic
- Color: White
- Operating Temperature: 32° to 104° F (0° to 40° C)
- Relative Humidity: 5 to 95 percent Non-Condensing
- Battery: Two Panasonic CR2032 or equivalent Lithium batteries (installed with pull tab)
- Included Accessories: Two Phillips flat-head screws
- Warranty: 2-Year Limited
