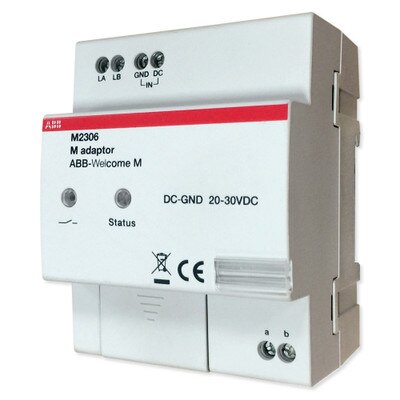

ABB-Welcome Elevator M Adaptor

The lift control modules include the M adaptor (M2306) and lift control relay module (M2307). These two devices together make the control of the lift only to authorized floor possible.

In case the resident presses the "unlock" button when receiving the guest's call from outdoor station, or the authorized user swipes the registered card or enters the correct password, the lift will go down automatically to the floor of the outdoor station. Then the lift will go to the dedicated floor where this resident lives, the lift cannot go to other floors even pressing the other floors' button in the lift.

The configuration should be done through the dedicated configuration software by connecting the M adaptor with PC/Laptop.

• Two function: lift control module and PC adaptor
• Enhance security to allow authorized visitor/resident to ONLY go to the designated floor while unauthorized visitors cannot activate any floor button in the lift
• Efficient programming through PC by dedicated commissioning software
• Each module supports up to 16 floors
• Up to 16 modules can be cascaded

The device must only be installed on mounting rails according to DIN EN 50022. M2306 is highly recommended to install in the lift motor room on the top floor or the electrical riser; while M2307 is highly recommended to install in the lift cabin.

During the configuration, lift control adaptor can be directly connected to a Windows PC where the installed PC software (ABB Welcome M PC Configuration Tool) can be used. In another word, no need of local power supply during configuration.

NOTE: Connects to ABB System Controller and Elevator Lift Control Relay Module (not included).
