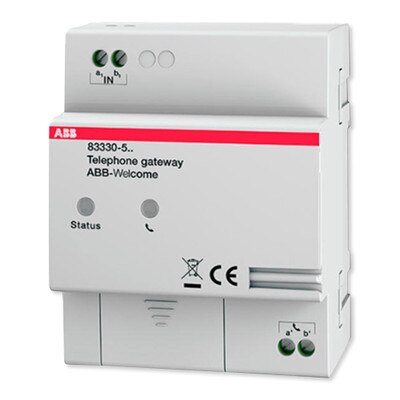

ABB Telephone Gateway
Product Description
The telephone gateway allows users to control doors remotely and communicate with outdoor station via mobile or landline telephones.
- Your PSTN telephone becomes the audio indoor station
- Unlock the door, switch the light, communicate through normal telephone
- Any mobile device can be set as extended indoor station
- Turn your System Controller or Door Actuator On/Off from your phone
- Efficient programming through PC by IP Gateway
- Simple configuration
The 83350 Telephone gateway is part of the ABB-Welcome door communication system and operates exclusively with components from this system. The product serves for connecting a telephone system to the ABB-Welcome system, so that the connected telephones will act as audio Indoor stations.
To use the Telephone gateway, it is necessary to configure the device as an analogue subscriber of your telephone system. The device must only be installed on mounting rails according to DIN EN 50022.
NOTE: Connects to ABB System Controller (not included). Must be configured as an analog subscriber of your telephone system.
Tech Specs
- Part Number: 83350-101-500-01
- Operating Temperature: -13° to 131°F (-25° to 55°C)
- Protection: IP20
- Single-Wire Clamps: 2 x 0.6 mm2 – 2 x 1 mm2
- Fine-Wire Clamps: 2 x 0.6 mm2 – 2 x 0.75 mm2
- Telephone Line Clamps: 0.2mm2 – 1.5mm2
- Bus Voltage: 28 ± 2V
- Dimensions: 3.54 x 2.83 x 2.56 inches (90 x 72 x 65 mm)
- Warranty: 2 Years
System Capacity
- 9 Guard Units per System
- 60 Buildings per System
- 250 Indoor Stations per Building
- 9 Outdoor Stations per Building (including gate and other outdoor stations)
- 2 Locks per Outdoor Station
