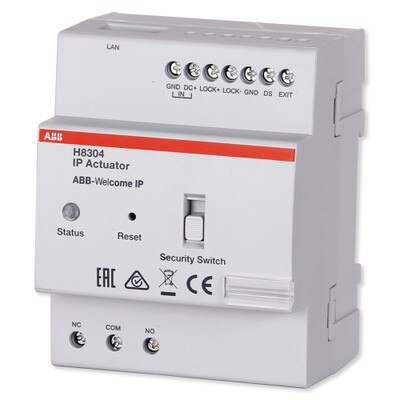

ABB-Welcome IP Actuator (LAN port)

$190.33
SKU: ABH8304

Order now and we'll ship usually within 3-5 business days.

WARNING: Cancer and Reproductive Harm – www.P65Warnings.ca.gov

Product Description

The ABB-Welcome IP Actuator uses ethernet connections to add third-party devices such as door openers or light switches to your ABB-Welcome IP system. This ethernet switch port receives signals from an ABB controller or station and relays the signals to the connected devices to turn them on/off.

  • Allows for integration of door openers or light switches into ABB-Welcome IP system
  • Adjust the duration of lock release or timing of lighting activation.
  • Powered via ethernet connection (PoE) or from separate power supply adapter
  • DIN rail mounting

NOTES:Requires an Ethernet connection. ABB-Welcome IP stations sold separately.

Tech Specs

  • Part Number: H8304
  • Network Performance:
    • Ethernet: 6 Mbps (8,928 packets/sec)
    • ARP: 40 packets/sec
    • ICMP: 1 Mbps (1,488 packets/sec)
    • IP: 20 packets/sec
  • Rated voltage: 24 V DC
  • Operating voltage range: 20-27 V DC
  • Current:
    • 27V DC, 310mA
    • 24 V DC, 350 mA
  • Signal: 230 V AC, 3 A
  • Power Supply Door Opener:
    • DC: 12 V DC, 4 A pulse, max. 500 mA permanent
    • AC: 12 V AC, 50 Hz, max. 500 mA permanent
  • Dimensions: 71 mm × 90 mm × 64.5 mm
  • Ambient temperature: -25 ° C to 55 ° C
  • Network Connection Standards: IEEE802.3, 10/100 Mbps, auto MDI / MDI-X
  • Warranty: 2 Years
