ABB Welcome Mini OS Video Kit
Product Description

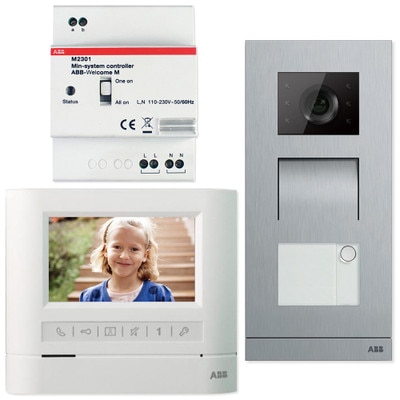

The ABB-Welcome Mini OS Video Kit allows you to communicate with visitors at your front door. This complete kit consists of an outdoor station with a camera, microphone, and speaker, an indoor video station with a hands-free intercom and video screen, and system controller that commands the whole system.
ABB-Welcome Mini Outdoor Station
ABB brings the sense – hearing, sight, and touch – together in one pleasurable communication experience. That is why the ABB outdoor stations become an integral part of users' lives.
- Compact size, surface mounted
- 1 or 2 round pushbutton options
- Clean design with integrated camera
- Light switch or calling guard programmable for the 2nd pushbutton
- Up to 2 lock connections
Installation is as easy as 1-2-3. The screwless, snap-on design is used on both the outdoor and indoor stations. This makes installation an easy, quick, and enjoyable process for both surface and flush mounting.
ABB-Welcome Basic 4.3" Video Hands-Free Indoor Station
4.3" display with 6 touch-sensitive buttons and on-screen display (OSD).
- "1" button can be customized as room to room intercom, home to home intercom, call guard unit, etc.
- "Doctor" function for automatic unlock
- 5 ringtones for different call sources, i.e. from default outdoor station, secondary outdoor station, door bell, intercom or guard unit
- 5-level adjustable volume
- The ringtone can be one time ringing(3s) or repeated(30s)
- Option to be fitted with induction loop for the deaf
- Mute one indoor station or all indoor stations in the same apartment
- Both surface mount and desktop mount (with the desktop bracket) are optional
The M22344-W is an integral part of the ABB-Welcome door communication system and operates exclusively with components from this system. The device must only be installed in dry indoor rooms.
ABB-Welcome Mini System Controller
As the "brain" of the individual system, it manages the communications between the outdoor station and the indoor station.
- Two working modes to switch between "all on" and "one on"
- If in "all on" mode, and the apartment contains more than one video indoor station, all the screens in the apartment will be on. If in "one on" mode, only one screen is on.
- 1 LED for normal working condition indication
- Can serve as auxiliary BUS power supply when connecting to gateway under certain mode
- Over-heat protection, over-current protection, lightning protection
The M2301 mini-system controller is an integral part of the ABB Welcome door communication system and operates exclusively with components from this system. The device must only be installed on mounting rails according to DIN EN 500022.
Internal Bus
The system controller supplies the other bus subscribers with voltage and controls communication on the 2-wire bus. Starting from the system controller, the 2-wire bus is divided into 2 parts – the internal bus and external bus. The internal bus is the bus for controlling devices of indoors or sub insulated system devices. In the building system, it refers to the bus line from system controller to the last indoor station. In the networked system, it refers to the bus line from system controller to the last gateway.
External Bus
The external bus is the bus for controlling devices of outdoors of the same insulated system and outdoor related system devices. In the building trunk system, it refers to the bus line from system controller to outdoor station. In the networked system, it refers to the bus line from system controller to the gate station
In The Box:
- Welcome Mini Outdoor Station
- Welcome Basic 4.3" Video Hands-Free Indoor Station
- Welcome Mini System Controller
NOTE: Connects to ABB System Controller (not included). Connects to ABB System Controller (not included).
Tech Specs
- Part Number: M20365
- Warranty: 2 Years
Mini Outdoor Station
- Part Number: 1 Button: M21311P1-A, 2 Button: M21311P2-A
- Dimensions: 3.89 x 6.61 x 1.02 inches
- Warranty: 2 Years
Video Hands-Free Indoor Station
- Part Number: M22344-W
- Display Resolution: 480 x 272
- Display Size: 4.3 inches (10.92 cm)
- Operating Temperature: 14° to 131°F (-10° to 55°C)
- Storage Temperature: -40° to 158°F (-40° to 70°C)
- Protection: IP30
- Single-Wire Clamps: 2 x 0.28 mm2 – 2 x 0.75 mm2
- Fine-Wire Clamps: 2 x 0.28 mm2 – 2 x 0.75 mm2
- Bus Voltage: 20-30V
- Dimensions: 5.39 x 6.1 x 0.94 inches
- Approvals: CE, RoHS
- Warranty: 2 Years
Mini System Controller
- Part Number: M2301
- Operating Temperature: -13° to 131°F (-25° to 55°C)
- Storage Temperature: -40° to 158°F (-40° to 70°C)
- Protection: IP20
- Single-Wire Clamps: 2 x 0.28 mm2 – 2 x 1 mm2
- Fine-Wire Clamps: 2 x 0.28 mm2 – 2 x 1 mm2
- Mains Voltage: 100-240V, 50/60 Hz, 1A
- Bus Voltage: 28 ± 2VDC, 0.65A
- Size: 4U
- Dimensions: 3.54 x 2.83 x 2.56 inches
- Warranty: 2 Years
System Capacity
- 9 Guard Units per System
- 60 Buildings per System
- 250 Indoor Stations per Building
- 9 Outdoor Stations per Building (including gate and other outdoor stations)
- 2 Locks per Outdoor Station
