ABB-free@home Keypad, 4 Function

$69.14 $89.37

Please Select Option To View Availability

WARNING: Cancer and Reproductive Harm –

Product Description

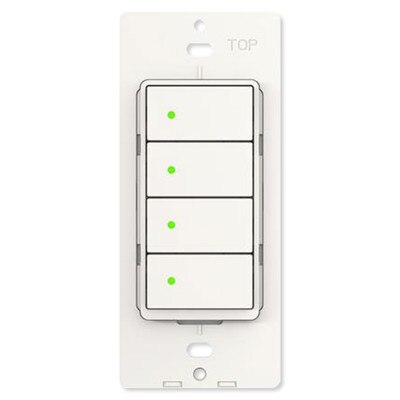

The ABB-Free@home Keypad (4 Function) is used to manually command up to 4 specific functions or user-created scenes with its 4-button keypad. No electrical loads are directly wired to this device. Instead, it communicates wirelessly via the ABB-free@home system to other connected devices in order to control those devices. It does not include a built-in switch or dimmer.

  • Control up to 4 devices or smart home scenes wirelessly via the ABB-Free@home system
  • Can fit into a standard decorator-style wall plate
  • Binary input allows for connection of a mechanical switch for three-way applications with scene control from multiple locations
  • Each key features an LED that lights when the key is turned on
  • LED backlight helps locate the keypad in the dark

In The Box:

  • 4-Button Keypad
  • Manual

Notes: Requires connection to the ABB-free@home System Access Point 2.0 (sold separately). Requires connection to the ABB-free@home system.

Tech Specs

  • Part Number:
    • KP-4.1-LA (Light Almond)
    • KP-4.1-WH (White)
  • Operative Voltage: 120 VAC, 60Hz
  • Connection: Hot and Neutral wires required
  • Wireless Protocol:
    • free@home
    • 2.400 – 2.483 GHz
    • Meshed
  • Operating Temperature: 23°F to 113°F (-5°C to 45°C)
  • Certifications: UL, FCC, IC
