Aeotec Z-Wave Plus v2 Range Extender 7, Gen7

$34.99
SKU: AEZW189

IN STOCK! Ships same business day if ordered before 3pm PT

WARNING: Cancer and Reproductive Harm – www.P65Warnings.ca.gov

Product Description

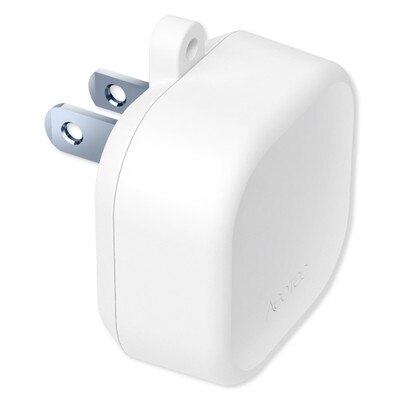

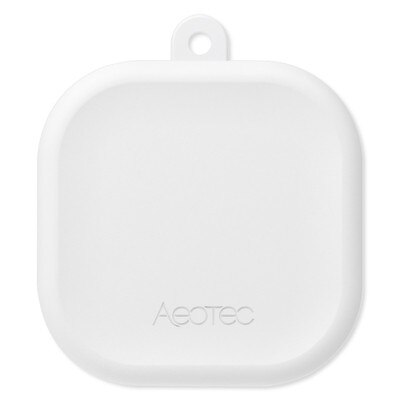

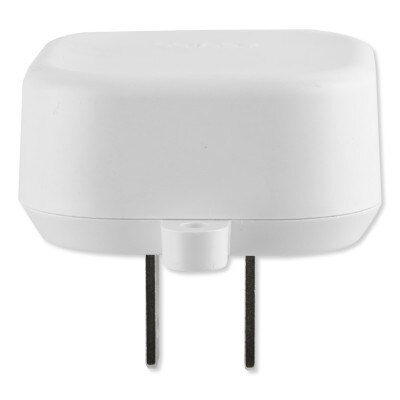

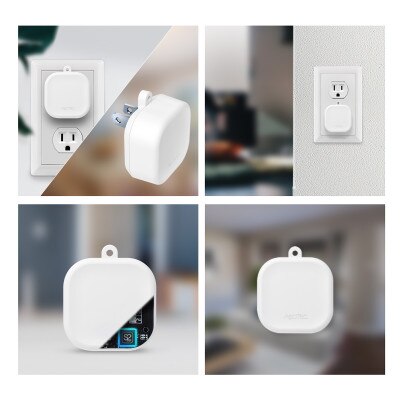

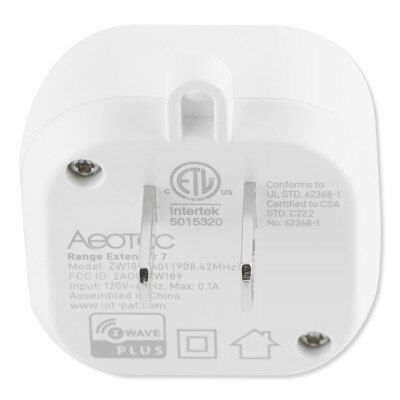

The Aeotec Z-Wave Plug-In Repeater 7 is a simple plug-in device that improves Z-Wave Plus communications for your home automation system. The Repeater receives Z-Wave signals, amplifies them and then passes them across to your Z-Wave network, boosting its range and quality. The Range Extender 7 is designed to be as small and as compact as possible so that it doesn't block neighboring power outlets.

Each Range Extender is powered by Z-Wave Plus technology, allowing for the widest Z-Wave compatibility possible as well as enhanced S2 security, longer battery life, and improved signal strength.

In The Box:

  • Range Extender 6

Note: Item will not work to boost Wi-Fi signal, intended only as Z-Wave range extender.

Tech Specs

  • Part Number: ZW189
  • AC Input: 120V 60Hz, Max: 100mA
  • Power Consumption: 0.6W
  • Frequency: 908.42MHz
  • Product Dimensions: 2.09 x 1.811 x 1.57 inches (53.2 H x 46 W x 40mm D)
  • Operating temperature: 32°F to 104°F/0°C to 40°C.
  • Operating distance: Up to 98 feet/30 meters indoors; Up to 492 feet/150 meters outdoors.
  • Relative humidity: 8% to 80%.
  • Waterproof and Dust Rating: IP20
  • Smart Start: Yes
  • Security Encryption: S2 Unauthenticated, S2 Authenticated
  • Certifications: FCC, CE, RoHS, Z-Wave Plus
  • Warranty: 1 Year

Product Docs
