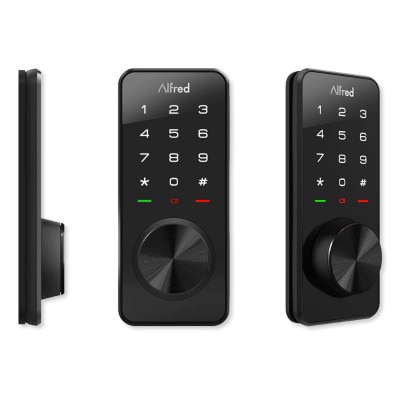

Alfred DB1 Smart Lock Touchscreen Deadbolt, Bluetooth, with Key Override

$149.00
SKU: AFDB1ABL

Order now and we'll ship usually within 3-5 business days.

WARNING: Cancer and Reproductive Harm – www.P65Warnings.ca.gov

Product Description

The Alfred DB1 Smart Lock Touchscreen Deadbolt, Bluetooth replaces a standard deadbolt with a keyless touchscreen keypad accessed by 4-10 digit PIN codes or Bluetooth ekeys. The Alfred deadbolt brings a smooth design aesthetic to a more streamlined lock, with model variations allowing you to select the entry options you need. All DB1 models include Bluetooth connectivity for One-Touch access, allowing you to simply touch the unit when your phone is nearby to open the lock. This smart deadbolt is the full keyless DB1 Model. An optional Alfred Connect Wi-Fi Bridge allows you to operate the lock remotely, enables integration into a Wi-Fi compatible smart security system, and adds Google Home Assistant or Alexa voice control support.

  • Motorized deadbolt with illuminated touchscreen unlocks with PIN code or Bluetooth ekey
  • Bluetooth operation standard on all DB1 locks with Alfred Home App
  • Assign up to 20 unique PIN codes including 1 single use and scheduled codes to control access to your home amongst family, friends, contractors, and more
  • Visual Pin Protection lets you add random numbers before or after your unique pin number and still operate the lock, making it difficult for someone to guess your code
  • Auto relocking feature locks the deadbolt after 30 seconds
  • LEDs indicate Lock Status, plus low battery warning at the lock
  • Hardened steel roller and 128 bit encryption for enhanced security
  • Bump and pick proof with no visible cylinder
  • Intertek 20-Minute fire rating for residential high-rise code
  • Easy to Install with BILT digital video install guides

Why You Would Use This Product:

The Alfred DB1 Smart Lock Touchscreen Deadbolt, Bluetooth provides additional security and access control to your home through its PIN codes and Bluetooth ekeys. If copying, sharing, and potentially losing physical keys is too much effort or a safety risk for your home, this deadbolt ensures only trusted guests and family members can enter your home. It is perfect as either a stand alone smart security device or as another piece of a smart home security network.

Alfred Home App

Access your Alfred deadbolt, share access, and adjust settings from the Alfred Home mobile application for iOS and Android. The Alfred Home app uses Bluetooth connections to wirelessly unlock your Alfred deadbolt, no PIN code required. An unlimited amount of Bluetooth ekeys can be created and shared. The mobile app also allows for the creation, sharing, and deletion of PIN codes and adjusting device settings. No smart home hub is required. Additional features (Remote lock/unlock, reviewing lock activity, and receiving alerts) require the Alfred Connect Wi-Fi Bridge (sold separately) and router.

Bilt Offers Intuitive 3D Interactive Instructions for Installations and Repairs

The BILT app provides official 3D interactive instructions with voice, text, and animated guidance for thousands of products from partnered brands. BILT's expert designers create easy-to-follow multimedia instructions for end-users or installers to follow along for hassle-free installation or repair experiences.

  • Follow audio, text & animated images throughout install or repair process
  • Zoom & rotate images 360 degrees for complete visual references
  • Replay steps instantly
  • Leave ratings & reviews to improve future performance
  • Register your product & access warranties

In The Box:

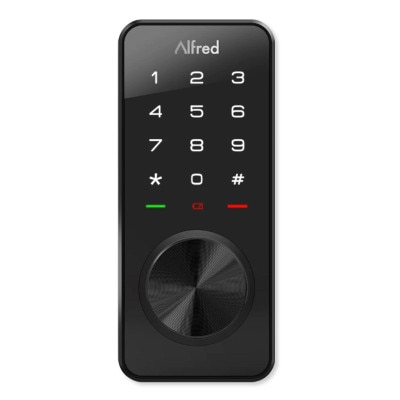

  • Exterior Keypad

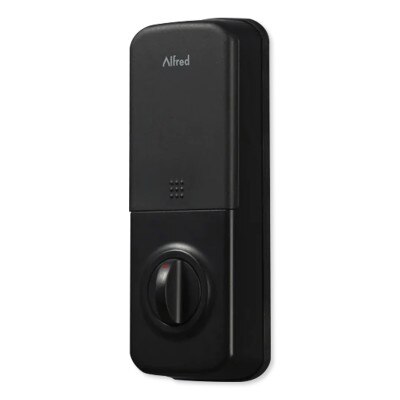

  • Interior Lock
  • Mounting Plate
  • Latch Bolt
  • Strike Plate
  • Reinforcement Plate
  • Battery Cover
  • 4 x AA Alkaline Battery
  • Screw Pack
  • Rotation Shaft with Key Tailpiece

NOTE:

  • Turnkey operation only available with DB1-A and DB1-B models.
  • Z-Wave compatibility only with DB1 and DB1-C models.

Tech Specs

  • Part Number: DB1-BL
  • UPC: 628341330039
  • Finish: Black
  • Latch Bolt: Adjustable 2 3/4", 2 3/8" backset, 3 faceplates square corner/round corner/drive in
  • Handed: Reversible left and right
  • Key Override: No, Available on DB1-A or DB1-B Models Only
  • Touch Keypad: Illuminated 12 button keypad
  • Pin Code Length: 4-10 Digits
  • Power Battery: 4 x AA
  • Emergency Power Port: Yes – USB
  • Operating Temperature: -22°F to 140°F (-30°C to 60°C)
  • Door Thickness: 40-60mm
  • Dimensions:
    • Exterior Escutcheon: 5.90 L x 2.56 W x 0.55 H inches (150 x 65 x 14 mm)
    • Interior Escutcheon: 7.87 L x 3.03 W x 1.81 H inches (200 x 77 x 46 mm)
  • Warranty: 2-Year Limited
