AprilAire S86WMUPR Programmable Wi-Fi Multi-Stage Universal Thermostat with IAQ Control


IN STOCK! Ships same business day if ordered before 3pm PT

WARNING: Cancer and Reproductive Harm –

Product Description

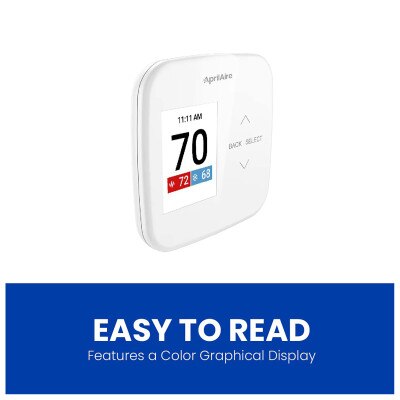

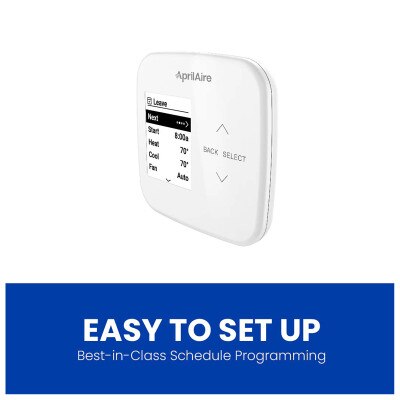

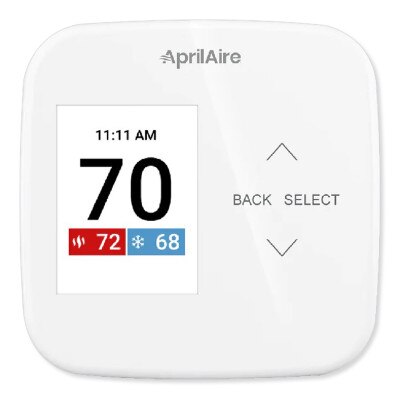

The AprilAire S86WMUPR Programmable Wi-Fi Multi-Stage Universal Thermostat with IAQ Control works with most 2H/2C or 4H/2C HVAC and heat pump systems, plus humidifier/dehumidifier and whole home ventilation systems to provide easy to use temperature and fan control for your home. This Wi-Fi connected AprilAire thermostat offers 7-day programming for you to create unique temperature settings for each day of the week depending on your schedule. The Thermostat's 2.4" color display clearly shows the current and target indoor temperatures. Menu settings are shown when the thermostat is interacted with. The outdoor temperature can be displayed when a wired temperature sensor is connected. The thermostat is designed to reduce your HVAC system's energy usage with its scheduled programming, HeatBlast function for rapid heating, and Progressive Recovery feature which brings your indoor temperature to a desired setpoint prior to a scheduled event.

  • Wi-Fi programmable thermostat works with 2H/2C or 4H/2C HVAC or heat pump systems
  • Integrates with 1 Indoor Air Quality Control (IAQ) system: Humidifier, Dehumidifier, or Ventilation
  • Compatible with Wi-Fi connected home automation systems
  • 2.4" color display presents indoor temperature and humidity, with option for additional readings from outdoor and remote indoor sensors (sold separately)
  • Progressive Recovery feature meets temperature setpoint before next scheduled temperature event
  • HeatBlast feature quickly raises indoor temperature by 3°F to 5°F
  • Event-Based Air Cleaning automates ventilation for fresh air

Why You Would Use This Product:

The AprilAire S86WMUPR Programmable Wi-Fi Multi-Stage Universal Thermostat with IAQ Control is compatible with most HVAC systems, along with heat pump systems, making it ideal for most installations. If you already have a Wi-Fi compatible home automation system, this thermostat can be added to it's network in order to participate in smart home scenes and functions.

AprilAire Wi-Fi Thermostat App

The AprilAire Wi-Fi Thermostat App works with your Wi-Fi connected AprilAire devices through its user-friendly design. The App is available for free on iOS and Android devices, and synchronizes settings and configurations made from an AprilAire thermostat or online web portal. Features not available on certain thermostat models are automatically removed from the app.

In The Box:

  • Thermostat
  • Mounting Hardware

NOTE: Only one (1) air quality ancillary system (humidifier, dehumidifier, whole home ventilation) can be controlled per thermostat.

Tech Specs

  • Part Number: S86WMUPR
  • UPC: 686720007699
  • Color Graphical Display: 2.4-inch
  • Power: 24V (C-Wire required)
  • Heat/Cool Stages: 2H/2C
  • Heat Pump Stages: 4H/2C
  • Navigation/Set-Up: Real Language
  • Controls & Display Main Menu:
    • Set Schedule Button
    • Clean Screen
    • Set Vacation
    • Set Current Time and Date
    • Done Button (Exit Menu)
    • User System Settings
  • Environment:
    • Operating Temperature: 32° to 120° F (0° to 48.9° C)
    • Operating Humidity: 5% to 90% Relative Humidity
  • Electrical:
    • Operating Voltage – 24VAC (18-30VAC)
    • Current – Maximum: 2.5A (total), 1.0A (single output)
    • Max Surge Current: 5A
  • Thermal Measurements:
    • Display Range Room Temperature: 32° to 99°F (0° to 40°C)
    • Outdoor Temperature: -40° to 130°F (-40° to 55°C)
    • Setpoint Temperature Ranges:
      • Heat: 40° to 90°F (4° to 32°C)
      • Cooling: 50° to 99°F (10° to 37°C)
    • Setpoint Humidity Ranges:
      • Humidification: 10% to 50% R.H.
      • Dehumidification: 40$ to 90% R.H.
  • Dimensions: 4.38 L x 4.38 W x 0.80 D
  • Approvals: FCC
  • Warranty: 5-Year Limited

Product Docs
