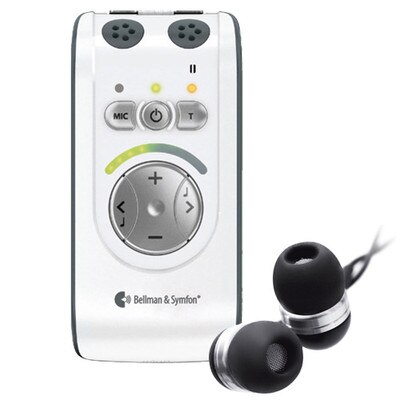

Bellman & Symfon Mino Personal Amplifier with Stereo Earphone

$199.95
Item # BSHCMINOEP

Order now and we'll ship usually within 1-2 business days.

WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov

Stereo earphone included.

Swedish Bellman & Symfon Mino Digital Personal Amplifier is an all-digital personal amplifier that helps you hear better in most everyday situations. Mino delivers crystal clear sound, even in busy environments. Whether you wear a hearing aid or just have the occasional hearing difficulty that arises out of everyday life, the Mino helps you understand sounds and words and make listening a more enjoyable activity.

How It Works

The Mino uses digital signal processing which isolates speech while removing background noise and feedback.

Using the Mino is intuitive. Just place it on a table or hang it around your neck. Speech will come through loud and clear. Choose to listen with headphones, earphones, Microset or if you use hearing aids, via a neckloop (sold separately).

Features

  • Digital Signal Processing, DSP
  • Built in omnidirectional electret microphone and zoom microphone
  • 10 channel dynamic range compressor
  • 10 channel dynamic noise suppression
  • Adaptive feedback manager
  • Intuitive user interface
  • LED lightbar for excellent readability
  • 9 step volume control (5 dB/step)
  • 9 step tone control
  • Clear indication of Volume, Tone, Mic and T mode
  • Low battery warning indicator
  • Telecoil pickup for inductive loops
  • Push-to-listen mode (Int. mic and Aux in mixed)
  • Auxiliary stereo signal input (2.5 mm telejack)
  • Headphones stereo output (3.5 mm telejack)
  • Auto mute when switching between signal sources
  • High gloss finish to minimize handling sound
  • Requires no individual fitting
  • Built-in rechargeable lithium-ion battery
  • Universal charger with included mains plug
  • BE9135 Neck strap with safety clasp included
  • Polished stainless steel belt clip included

Power Supply

  • Battery power: Built-in lithium-ion battery, 3,7V 618 mAh, type McNair MCP413048
  • Operating time, fully charged: 18 hours (standard battery)
  • Charging time: 2.5 hours (standard battery)

Input Signals

  • Microphone: Built-in electric condenser microphones (omnidirectional or directional)
  • Line input: 2.5 mm stereo jack plug, sensitivity 0 dBV (maximum input signal) Automatic selection between line input and external microphone
  • Telecoil: Angled at 45° for optimal function horizontally and vertically

Output Signals

  • Headphone socket: 3.5 mm stereo jack plug
  • Output power headphone socket: 100 mW at 16 ohm load
  • Distortion: BE9122 Headphones BE9124 In-ear phones, 0.6 percent THD, 0.08 percent THD
  • Dynamic range: 90 dB SNR (electrical)
  • Frequency range: 40 to 10,000 Hz (electrical)
  • Max. output level, saturation:
    • BE9122 Headphones: 124.3 dB SPL (at 2.5 kHz)
    • BE9124 In-ear phones: 132.0 dB SPL (at 5 kHz)
    • BE9125 Stetoclip: 133.7 dB SPL (at 1 kHz)
  • Amplification, full volume(1 kHz, 60 dB SPL input signal):
    • BE9122 Headphones: 42.5 dB
    • BE9124 In-ear phones: 55.0 dB
    • BE9125 Stetoclip: 58.2 dB
  • Amplification, full volume (60 dB SPL input signal, HFA):
    • BE9122 Headphones: 46.5 dB
    • BE9124 In-ear phones: 51.5 dB
    • BE9125 Stetoclip: 52.0 dB

Environmental Requirements

  • Operating temperature: 32 to 95° F (0 to 35° C)
  • Relative humidity: 5 to 95 percent (non condensing)

Properties

  • Volume control: 9 increments of 5 dB
  • Tone control: ±10 dB in 9 increments, cut-off frequency 1.6 kHz
  • On/Off button: Clear, countersunk pushbutton
  • Microphone and T position: Separate pushbuttons
  • Combined sound sources: For mixing external sound and sound from the internal microphone
  • Balance control (right/left): 0 to 20 dB programmable reduction in increments of 5 dB
  • Setting for max. volume: 0 to 21 dB programmable reduction in increments of 3 dB
  • Bass Reduction setting: Lowering of frequencies under 400 Hz by 10 dB
  • Dynamic compressor:
    • 10 channels
    • Dynamic amplification 0 to 35 dB
    • Compression 3:1
    • Expansion 1:1.5
    • Attack time 20 ms < 3kHz, 25 ms ≥ 3kHz
    • Recovery time 110 ms < 3kHz, 200 ms ≥ 3kHz
  • Dynamic noise reduction: 10 channel adaptive noise reduction
  • Feedback handling: Adaptive feedback reduction
  • Digital signal processing: 22,050 kHz sampling frequency, 16-bit resolution in stereo
  • External dimensions: 99 x 48 x 22 mm
  • Weight: 75 grams
  • Color: Grey with white front panel and silver-colored buttons.
  • Regulatory requirements: CE, RoHS, WEEE, FCC, C-Tick
