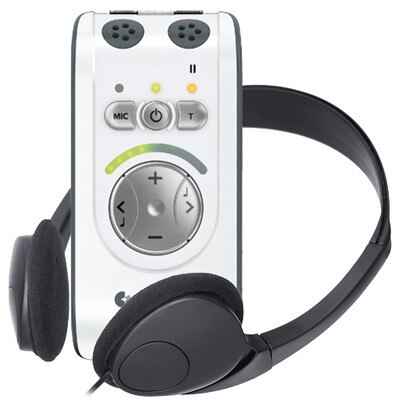

Bellman & Symfon Mino Personal Amplifier with Stereo Headphone

$199.95
Item # BSHCMINOHP

Order now and we'll ship usually within 1-2 business days.

WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov

Stereo headphone included.

Swedish Bellman & Symfon Mino Digital Personal Amplifier is an all-digital personal amplifier that helps you hear better in most everyday situations. Mino delivers crystal clear sound, even in busy environments. Whether you wear a hearing aid or just have the occasional hearing difficulty that arises out of everyday life, the Mino helps you understand sounds and words and make listening a more enjoyable activity.

Available for sale only in the U.S.

How It Works

The Mino uses digital signal processing which isolates speech while removing background noise and feedback.

Using the Mino is intuitive. Just place it on a table or hang it around your neck. Speech will come through loud and clear. Choose to listen with headphones, earphones, Microset or if you use hearing aids, via a neckloop (sold separately).

Features

  • Digital Signal Processing, DSP
  • Built in omnidirectional electret microphone and zoom microphone
  • 10 channel dynamic range compressor
  • 10 channel dynamic noise suppression
  • Adaptive feedback manager
  • Intuitive user interface
  • LED lightbar for excellent readability
  • 9 step volume control (5 dB/step)
  • 9 step tone control
  • Clear indication of Volume, Tone, Mic and T mode
  • Low battery warning indicator
  • Telecoil pickup for inductive loops
  • Push-to-listen mode (Int. mic and Aux in mixed)
  • Auxiliary stereo signal input (2.5 mm telejack)
  • Headphones stereo output (3.5 mm telejack)
  • Auto mute when switching between signal sources
  • High gloss finish to minimize handling sound
  • Requires no individual fitting
  • Built-in rechargeable lithium-ion battery
  • Universal charger with included mains plug
  • BE9135 Neck strap with safety clasp included
  • Polished stainless steel belt clip included

Power Supply

  • Battery power: Built-in lithium-ion battery, 3,7V 618 mAh, type McNair MCP413048
  • Operating time, fully charged: 18 hours (standard battery)
  • Charging time: 2.5 hours (standard battery)

Input Signals

  • Microphone: Built-in electric condenser microphones (omnidirectional or directional)
  • Line input: 2.5 mm stereo jack plug, sensitivity 0 dBV (maximum input signal) Automatic selection between line input and external microphone
  • Telecoil: Angled at 45° for optimal function horizontally and vertically

Output Signals

  • Headphone socket: 3.5 mm stereo jack plug
  • Output power headphone socket: 100 mW at 16 ohm load
  • Distortion: BE9122 Headphones BE9124 In-ear phones, 0.6 percent THD, 0.08 percent THD
  • Dynamic range: 90 dB SNR (electrical)
  • Frequency range: 40 to 10,000 Hz (electrical)
  • Max. output level, saturation:
    • BE9122 Headphones: 124.3 dB SPL (at 2.5 kHz)
    • BE9124 In-ear phones: 132.0 dB SPL (at 5 kHz)
    • BE9125 Stetoclip: 133.7 dB SPL (at 1 kHz)
  • Amplification, full volume(1 kHz, 60 dB SPL input signal):
    • BE9122 Headphones: 42.5 dB
    • BE9124 In-ear phones: 55.0 dB
    • BE9125 Stetoclip: 58.2 dB
  • Amplification, full volume (60 dB SPL input signal, HFA):
    • BE9122 Headphones: 46.5 dB
    • BE9124 In-ear phones: 51.5 dB
    • BE9125 Stetoclip: 52.0 dB

Environmental Requirements

  • Operating temperature: 32 to 95° F (0 to 35° C)
  • Relative humidity: 5 to 95 percent (non condensing)

Properties

  • Volume control: 9 increments of 5 dB
  • Tone control: ±10 dB in 9 increments, cut-off frequency 1.6 kHz
  • On/Off button: Clear, countersunk pushbutton
  • Microphone and T position: Separate pushbuttons
  • Combined sound sources: For mixing external sound and sound from the internal microphone
  • Balance control (right/left): 0 to 20 dB programmable reduction in increments of 5 dB
  • Setting for max. volume: 0 to 21 dB programmable reduction in increments of 3 dB
  • Bass Reduction setting: Lowering of frequencies under 400 Hz by 10 dB
  • Dynamic compressor:
    • 10 channels
    • Dynamic amplification 0 to 35 dB
    • Compression 3:1
    • Expansion 1:1.5
    • Attack time 20 ms < 3kHz, 25 ms ≥ 3kHz
    • Recovery time 110 ms < 3kHz, 200 ms ≥ 3kHz
  • Dynamic noise reduction: 10 channel adaptive noise reduction
  • Feedback handling: Adaptive feedback reduction
  • Digital signal processing: 22,050 kHz sampling frequency, 16-bit resolution in stereo
  • External dimensions: 99 x 48 x 22 mm
  • Weight: 75 grams
  • Color: Grey with white front panel and silver-colored buttons.
  • Regulatory requirements: CE, RoHS, WEEE, FCC, C-Tick
