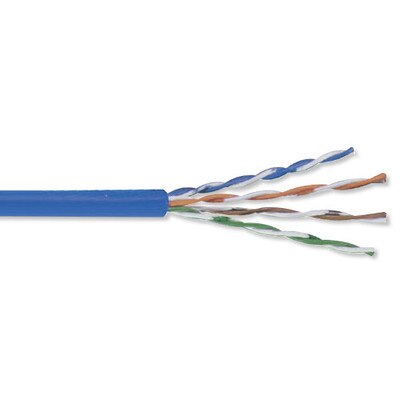

Cat5e Cable, 1,000'

$123.16
SKU: WRCAT5E10x

Please Select Option To View Availability

WARNING: Cancer and Reproductive Harm – www.P65Warnings.ca.gov

This is a heavy and/or oversized item and does not qualify for our shipping promotion.

Product Description

  • 4 pair, Category 5e unshielded twisted pair (UTP) cable
  • Riser communication (CMR) rated by ETL.
  • AWG #24 solid bare copper conductors
  • Polypropylene insulation
  • PVC jacket with ripcord under jacket and Countdown footage marking.
  • ETL Verified to TIA/EIA-568-B.2 Category 5e. Sweep tested to350 MHz.

Tech Specs

Physical Information:

  • UL Rating: CMR
  • Cable Weight: 22 lbs/1000'
  • Jacket Diameter: 0.205"
  • Min. Bend Radius: 0.8"
  • Max. Pulling Tension: 25 lbs.
  • Temperature Rating: -20 to 75°C

Electrical Information:

  • Voltage Rating: 300 V
  • Current Rating: 1.4 A

Conductor Color Code

  1. Blue and White/Blue
  2. Orange and White/Orange
  3. Green and White/Green
  4. Brown and White/Brown
