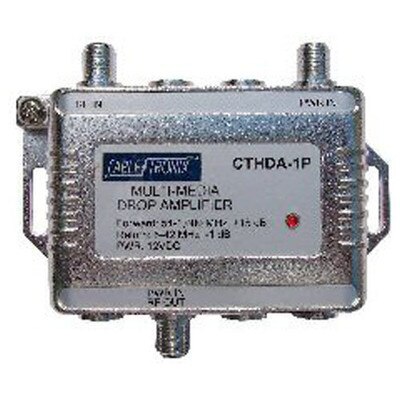

Cabletronix 1 GHz Multi-Media Drop Amplifier with Passive Return

$32.54
Item # NACTHDA1P

Order now and we'll ship usually within 1-2 business days.

WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov

  • For use in CATV systems that require two way multi media networking
  • Low noise
  • High isolation between ports
  • ESD Protection and zinc die cast housing prevent RFI
  • 6KV Surge protection on all ports
  • Perfect for digital cable applications
  • Remotely powered over coax
  • Line powered through RF port or externally powered through power in port
  • CT-BDA24 Model has an adjustable gain control & a switcheable FM trap
  • Forward Path: 54-1,000 MHz
  • Reverse Path: 5-42 MHz
  • Forward Gain: 15.0 dB
  • Reverse Gain (Loss): -1.0 dB
  • Isolation (out-out): N/A
  • Noise Figure: 3 dB Typical, 4 dB Max
  • Return Loss (In-out): 18 dB Typical
  • Power Supply Voltage: 12VDC, 200mA
  • Surge Protection (All ports): 6KV
  • Connections: F Type Female
  • Impedance: 75 Ohm
  • Operating Temperature: -40°C to + 60°C
