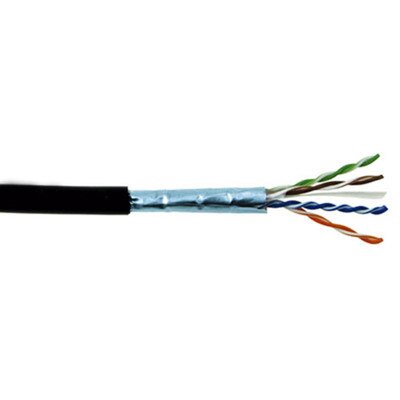

Cat6e Cable, Direct Burial, Shielded, Gel-Filled, 1,000'

$315.10
SKU: WRCAT6SHDB

Order now and we'll ship usually within 1-2 business days.

WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov

This is a heavy and/or oversized item and does not qualify for our shipping promotion.

Product Description

Description: CAT6 SHIELDED DIRECT BURIAL- ENHANCED 550 MHz 23 AWG SOLID 4PR, F/UTP, GEL TYPE, LLDPE JKT – BLACK – 1000 FT SPOOL

Product Information:

SCP Cat6 Shielded F/UTP Direct Burial cables meet TIA/EIA 568-C.2 Category 6 and ISO/IEC 11801 Ed2 Class E standards. SCP Cat6 F/UTP Direct Burial cables are constructed with a high quality Linear Low-Density Polyethylene (LLDPE) direct burial jacket that provides high impact protection and superior puncture resistance while retaining flexibility and strength even in harsh environments. This is a true direct burial cable unlike many other cables advertised as direct burial that use inferior PVC based jacketing.

Each Cat6 Shielded F/UTP Direct Burial cable is 550 MHz 23 AWG insulated solid bare copper conductors with a center spline separating the pairs and an overall AL foil shield. The cable is gel filled (flooded) for superior moisture resistance. This creates a round and flexible cable.

These cables are CMX rated for use in direct burial applications without conduit. It is packaged on 1000ft/305 meter wooden spool/drum.

Available in spools of: 1,000 Ft.

Tech Specs

  • Part Number: CAT6SH-DB
  • Sheath Printing: STRUCTURED CABLE PRODUCTS – – – P/N CAT6SH-DB – – – CAT6 SHIELDED DIRECT BURIAL ENHANCED 550 MHz 4 PR 23 AWG SOLID F/UTP GEL FILLED LLDPE VERIFIED TO ANSI/TIA-568-C.2 CE EU RoHS EC ZONE/DEVICE A B C D E 0 1 2 3 4 5 6 7 8 9 XXXX FEET MM/YY
  • Category: F/UTP- GEL CAT6-4P-PE
  • Test Standard: ISO/IEC11801, TIA-568-C.2 YD/T1019
  • Conductor:
    • Material: SOLID-Bare Copper
    • Nom. O.D.: 0.565 mm, ±0.005 mm
  • Insulation:
    • Material: HDPE
    • Diameter: 1.12 mm ± 0.03 mm
  • Screening Material: Mylar plus AL/Mylar
  • Sheath:
    • Thickness: 0.60 ±0.05 mm
    • External O.D.: 7.8 mm ± 0.4 mm
    • U.V Stability: U.V Resistant
    • Material: LLDPE (complies RoHS)
    • Color: Black
  • Surface Printing:
    • Letter Height: 3.0 mm ±0.3mm
    • Color: White
    • Print Error / Space: <= ±0.5 percent, 1m
  • Core Color:
    • White: Blue/Blue
    • White: Orange/Orange
    • White: Green/Green
    • White: Brown/Brown
  • Packing: Wooden reel
  • Weight: NW: 19.5kg; GW: 22.3kg
  • Packing Length: 305m ±1.5m
  • Rip-Cord: Yes
  • Drain Wire: Yes

Sheath Physical Properties

  • Before Aging:
    • Tensile Strength: >=10.0 Mpa
    • Elongation: >=350 percent
  • Aging Period: 100°C x 24hrs x 10d
  • After Aging: Elongation: >=300 percent
  • Cold Bend Test: -20°C 4 hours; No Cracking; 8x Cable O.D.

Electrical Characteristics (20°C)

  • Delay Skew:<=45 ns/100m
  • Velocity Of Propagation: 68 percent
  • Unbalanced-to-Ground Capacitance: Max 330 pf/100m
  • DC Resistance Max: 9.38 ohms/100m
  • DC Conductor Resistance Unbalance Max: 5.0 percent
