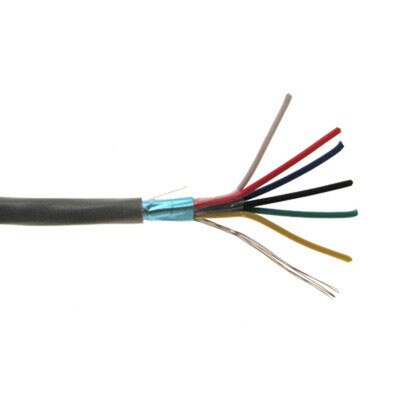

Communication Security Wire, 18AWG, 6C, Shielded with Drain, 1,000'
Product Description
Description: 6C/18 AWG STRANDED SHIELDED PVC – GRAY – 1000 FT SPOOL
Applications: Security Systems, Intercom Systems, Sound/Audio Systems, Power-Limited Controls. Cables are manufactured to meet current NEC guidelines and are verified by outside standards organizations including c(UL)us and c(ETL)us.
Features: Multi-Conductor shielded insulated stranded bare copper conductors, twisted with overall AL mylar shielding (with drain) and sunlight resistant PVC jacket. Ripcord and sequential foot markings printed on jacket.
Available in spools of: 1,000 Ft.
Tech Specs
- Part Number: 18/6SH-GY
- Marking: STRUCTURED CABLE PRODUCTS – – – P/N 18/6SH – – – 6 COND 18 AWG STRANDED SHIELDED TYPE CMR/CL2R FT4 75C — (UL) OR C(UL) E198137 CE EU RoHS EC ZONE/DEVICE A B C D E 0 1 2 3 4 5 6 7 8 9 XXXXFT
- Regulatory: UL 444, UL 13, NEC Article 760, NEC Article 725
- Application: Security Cable for Outdoor
Construction Characteristics
Conductor
- Material: Stranded Bare Copper
- Size: 18AWG X 6C
- Construction: 16/0.24mm ±0.004mm
Insulation
- Material: PVC
- Min. Thickness: 0.27mm
- Avg. Thickness: 0.30mm
- Diameter: 1.70mm ±0.05mm
- Colors: Black, Red, White, Green, Blue, Brown
Shield
- Core Wrap: PE Tape
- Drain Wire (TC): 7/0.20 ±0.004mm
- Shield: AL Foil
Jacket
- Material: PVC
- Min. Thickness: 0.50mm
- Avg. Thickness: 0.55mm
- Diameter: 6.50mm ±0.10mm
- Rip Cord: Nylon
- Color: Gray
Electrical & Physical Characteristics
- Rating: 75°C 300V
- Conductor Resistance: Max 24.4ohm/km at 20°C
- Dielectric Strength: Min AC1.5KV
- AC Leakage Current Through Overall Jacket: AC 1500V
- Twists Per Foot: 3.0
- Cold Bend Test: -20°C 4 hours; No Cracking
Insulation
- Unaged:
- Tensile Strength: 13.8Mpa
- Elongation: 150 percent
- Aged:
- Tensile Strength: 11.7Mpa (100°C 168h)
- Elongation: 80 percent (100°C 168h)
Jacket
- Unaged:
- Tensile Strength: 13.8Mpa
- Elongation: 150 percent
- Aged:
- Tensile Strength: 11.7Mpa (100°C 168h)
- Elongation: 80 percent (100°C 168h)
