Cool Components Cabinet Vent
Product Description

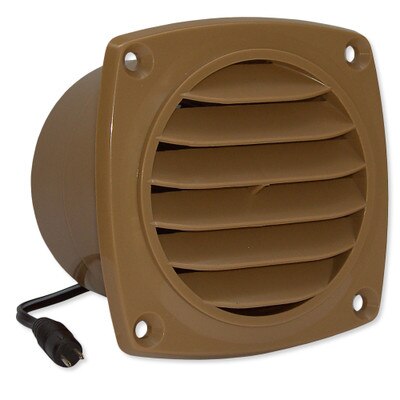

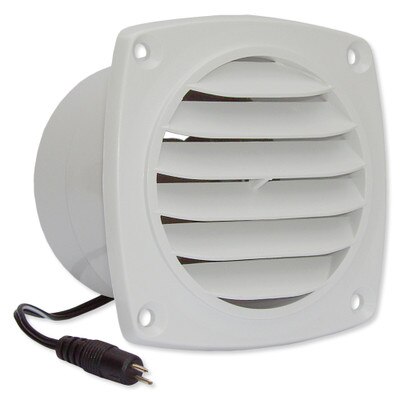

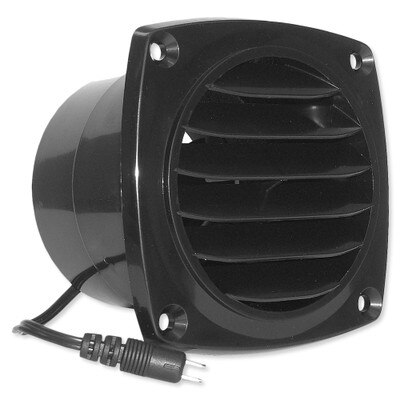

This unit is ideal for venting cabinets and enclosures and is self contained so no tubing or other contraptions. It features a top-quality brushless fan for low noise and long life. The fan unit can be configured to pull air out of a cabinet (default configuration) or push air into the cabinet (by reversing the fan). The unit is powered with DC voltage and when used with our Universal Power Supplies, can be run completely silent or more aggressively depending on the application. This Item Does Not Include a Power Supply But Does Require a Power Source. Available in Black, White, Tan.
- Quiet & Efficient Operation
- Aggressively Circulates Air in a Cabinet or Enclosure
- Quick and Easy Installation
- Uses Variable Voltage Power Supply to Adjust Fan Speed based on the Application
- Compatible with the Temperature Controllers for Advanced Control (TC-BSC & TC-AC)
Available for sale only in the U.S.
Tech Specs
- Dimensions:W – 3 5/8" x L – 3 5/8" x D – 2 5/8"
- Construction: PVC w/ Gloss Finish (Black, White & Tan)
- Cooling System: 1 Brushless Levitation Fan w/Superior Bearing System (Est. 50,000hr)
- Air Flow: 10.2 CFM (Max)
- Noise: Silent to ~22 dba (Max)
- Req'd Hole Size: 3 1/8" or 3 1/4" (Max)
Power Specifications:
- Multiple Units Can Be Powered with a Single PS-300 Power Supply
- Connection: 2-Pin FastWire System (Ensure proper polarity – Tip to +)
- Voltage: 7 to 12V DC
- Current: 40 milliamps at 12V DC
