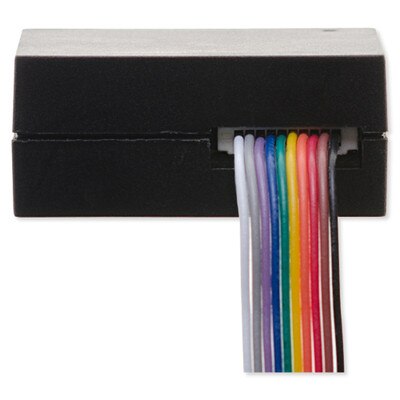

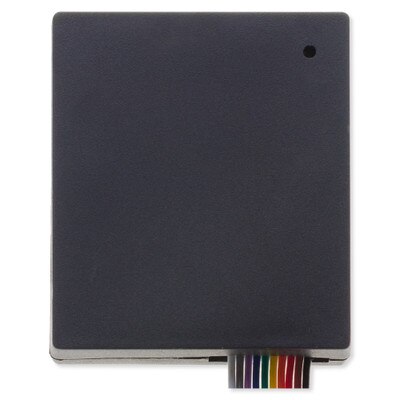

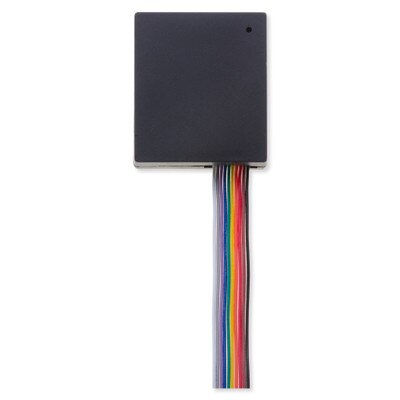

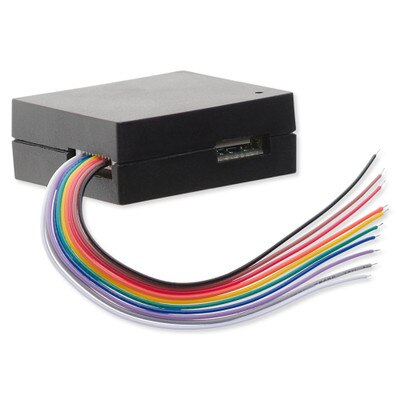

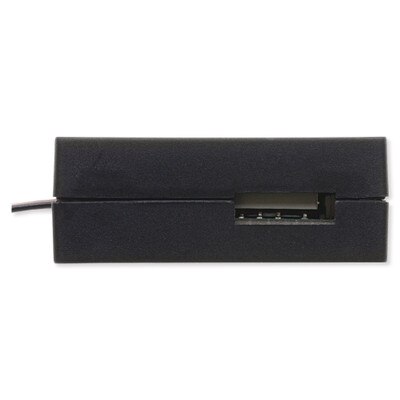

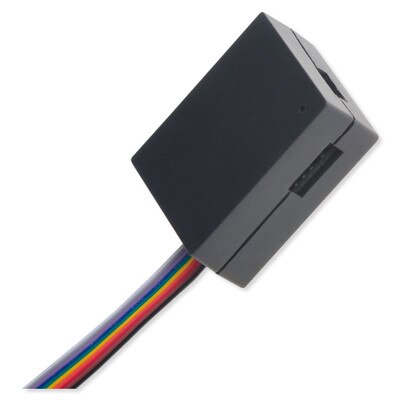

Danalock Universal Module V3, Z-Wave Plus, Gen5

$259.05
SKU: DLD0ZU1

IN STOCK! Ships same business day if ordered before 3pm PT

WARNING: Cancer and Reproductive Harm – www.P65Warnings.ca.gov

Product Description

The Danalock Universal Module V3 with Z-Wave Plus and Bluetooth technology turns 12-24V locking mechanisms into wireless devices that you can control and access with your smartphone. Enjoy the added convenience of wireless access control of garage doors, door strikes, electromechanical or magnetic locks, gates, windows, shades and more.

You can create, manage, and distribute digital keys for the Universal Module V3 with the Danalock app (Android and iOS). Program it to let housekeepers and other hired help into your home with a temporary digital key. Ensure that they only have access when you want. Create and send permanent or temporary access-keys via SMS or email. You can also choose to be alerted when the lock is used.

The Danalock Universal Module V3 is part of the Danalock ecosystem and uses the most advanced encryption method for transferring data (AES 256).

  • Control electronic devices such as garage doors, gates, and electronic locks with a smartphone using Z-Wave Plus, Bluetooth, and the Danalock app
  • Track status of connected devices with the Danalock app (iOS or Android)
  • Create digital keys for family members, friends, or temporary guests
  • Uses advanced encryption (AES 256) method for transferring data
  • Integrate it into your home automation system via Z-Wave Plus and Bluetooth

In The Box:

  • Universal Module V3, Z-Wave
  • Manual

NOTES: Make sure to connect the Universal Module to a smartphone during installation to ensure you have sole control of the devices (door, gate, etc.) and can grant access to others as soon as you're the registered owner. Requires the free Danalock app and a smartphone (with Bluetooth 4.2). Requires a Z-Wave network controller.

Tech Specs

  • Part Number: D0ZU1
  • Communication: Bluetooth 4.0/Z-Wave Plus
  • Bluetooth Range: 5-10 meters
  • Operating Voltage Range: 12-24V DC, 12-24V AC
  • Max Supply Input (at 24V): 100mA
  • Number of Relays:
    • 2 Relays
    • 1 Power Output
  • Type of Relays: Potential-free contacts (NO/NC)
  • Max AC Power: 1A at 12V
  • Max AC Current: 1A at 12V
  • Max Relay Voltage: 48V
  • Encryption Level: 256-bit AES
  • Color: Black
  • Material: ABS
  • Dimensions: 1-3/8 x 1-5/6 x 5/8 inches (35 x 40 x 15 mm)
