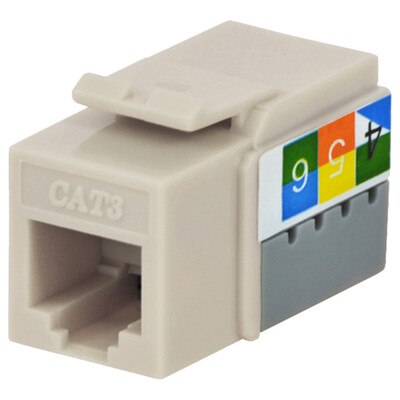

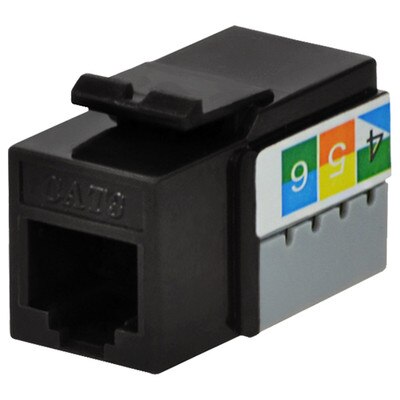

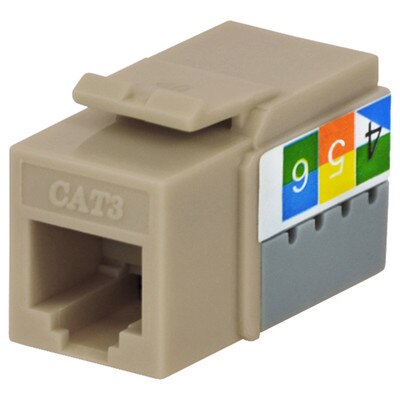

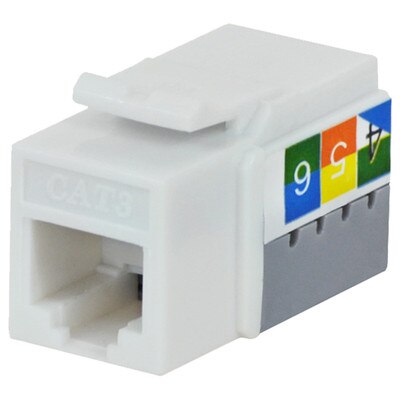

DataComm Cat3 Keystone Snap-In Connector
Product Description
These high performance Cat 3 Jacks will meet all of your everyday voice and data installation requirements for residential and light commercial. All of the keystone jacks are UL rated certified and meet FCC part 68 requirements.
- Dual wiring code label allows connector to be wired to standard telephone wire or Cat 5e wire.
- Snaps easily into any DataComm keystone style wall plate
- Available in 5 colors
- Designed to work with residential or light commercial installations
- 110-type insulation displacement connectors (IDC)
- High-performance voice and data transmission
- UL listed
- Meets FCC Part 68 requirements
- 20-year product warranty
Tech Specs
- Part Number: 20-3423-xx
- Cable Type: Cat 3
- Connection Type: Punchdown
- Side 1: RJ-11/12 (Female)
- Side 2: 110 IDC
- Insert Color: White
- Cover: ABS UL94V0
- IDC:
- Plastic: PC
- Pin: Phosphor Bronze Plated with Gold
- Pin: Phosphor Bronze Plated with Gold (50)
- PCB: UL 94V0
- IDC Cap: PC
- Approvals: UL, RoHS, FCC Part 68
- Warranty: 20 Years
