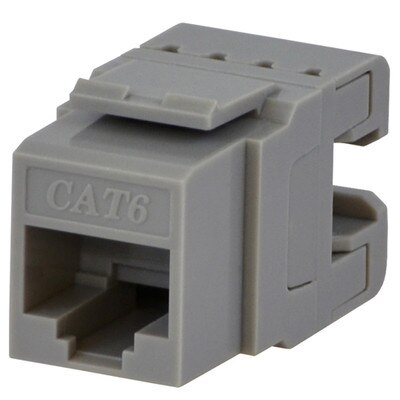

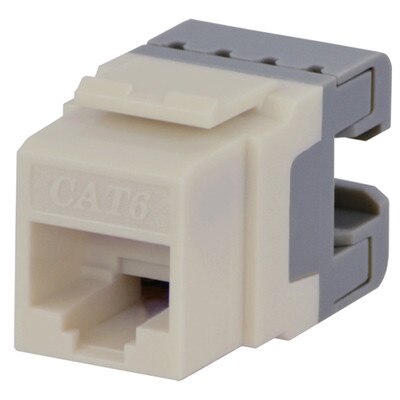

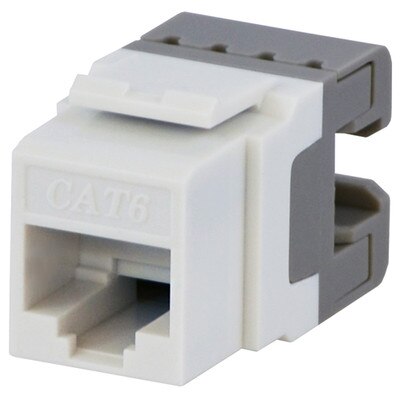

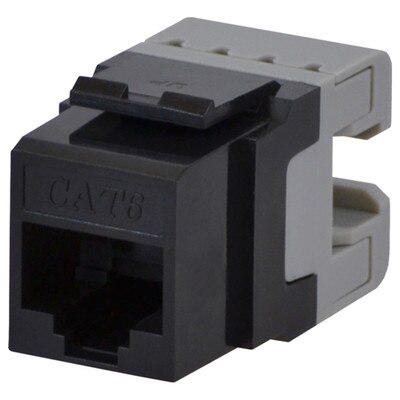

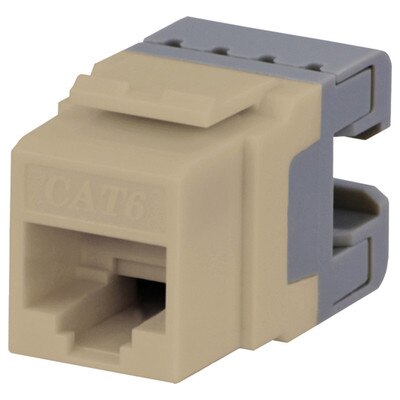

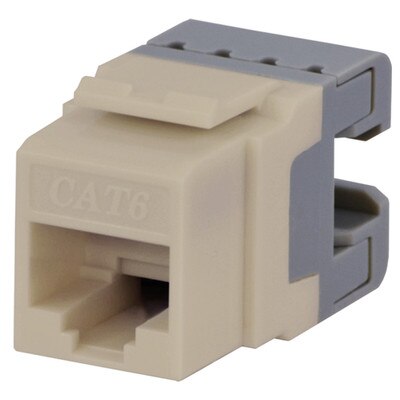

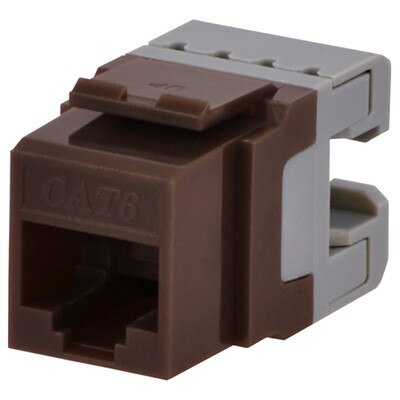

DataComm Cat6 Keystone Snap-In Connector

$3.60 to $3.62
SKU: DT203426xx

Please Select Option To View Availability

$3.60 to $3.62

Please Select Option To View Availability

WARNING: Cancer and Reproductive Harm – www.P65Warnings.ca.gov

Product Description

DataComm Electronics' high performance Cat 6 jacks feature a 180-degree configuration for rear termination, also featuring color-coded wiring labels for T568A and T568B. Our Cat 6 jacks are UL rated certified, meet FCC part 68 requirements, and comply with all TIA/EIS-568 requirements.

These jacks are designed to work with DataComm Electronics' keystone wallplates and surface mount boxes.

  • Dual wiring code label allows connector to be wired to either T568A or T568B
  • Available in 9 colors
  • 180-degree configuration for rear termination
  • 110-type insulation displacement connectors (IDC)
  • High-performance data transmission supported for applications up to 250 MHz
  • UL listed
  • Complies with all TIA/EIA-568 requirements
  • Meets FCC Part 68 requirements
  • 20-year product warranty

Tech Specs

  • Part Number: 20-3426-xx
  • Cable Type: Cat 6
  • Connection Type: Punchdown
  • Side 1: RJ-45 (Female)
  • Side 2: 110 IDC
  • Insert Color: White
  • Cover: ABS UL94V0
  • IDC:
    • Plastic: PC
    • Pin: Phosphor Bronze Plated with Nickel
  • Pin: Phosphor Bronze Plated with Gold (50)
  • PCB: UL 94V0
  • IDC Cap: PC
  • Approvals: UL, RoHS, FCC Part 68, TIA/EIA-568
  • Warranty: Standard 20-Year Product Warranty; 25-Year Channel System Warranty when used in conjunction with Honeywell Genesis Cable
